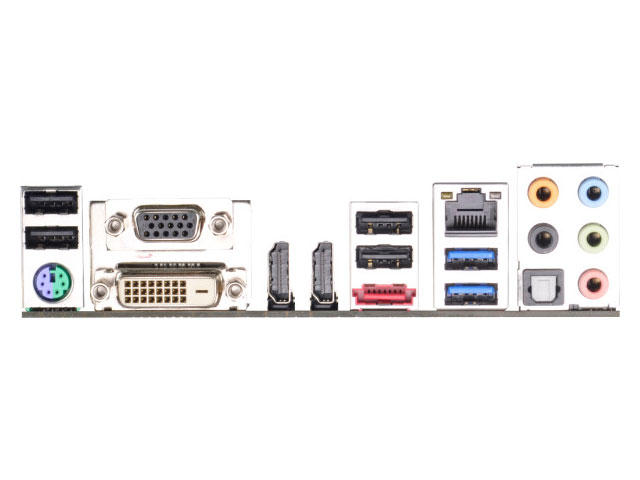

Интерфейси:

• 2x Antenna Ports
• 1x PS/2 Mouse/Keyboard Port
• 1x D-Sub Port
• 1x DVI-D Port
• 1x HDMI-Out Port
• 1x HDMI-In Port
• 1x Optical SPDIF Out Port
• 4x USB 2.0 Ports
• 1x eSATA Connector
• 2x USB 3.0 Ports (AMD A88X (Bolton-D4))
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 1x mSATA 6.0 Gb/
• 6x SATA3 6.0 Gb/s (RAID 0, RAID 1, RAID 5 and RAID 10)

Безжична връзка:

• IEEE 802.11a/b/g/n
• Dual-Band (2.4/5 GHz)
• High speed wireless connection up to 300Mbps
• 2 antennas to support 2 (Transmit) x 2 (Receive) MIMO Technology
• Bluetooth 4.0 Class II

Слотове за разширение:

• 1x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
• 1x Half/Full (mSATA) mini-PCI Express Slot
• Поддържа AMD Dual Graphics

Конектори:

• 1x Chassis Intrusion Header
• 1x TPM Header
• 1x CPU Fan Connector (4-pin)
• 1x Chassis Fan Connector (4-pin)
• 1x 24 pin ATX Power Connector
• 1x 4 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports)

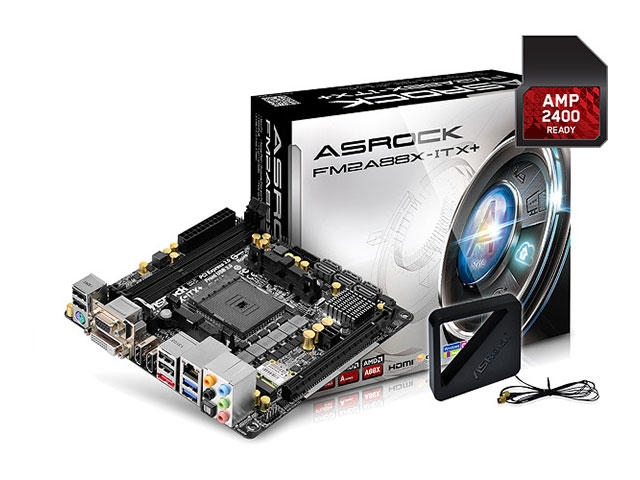

Комплектът включва:

• Упътване за бързо стартиране
• 2x SATA кабел
• 1x ASRock WiFi 2.4/5GHz Antenna
•  2x SMA Wi-Fi Antenna Cables

Сертификати: FCC, CE и WHQL
