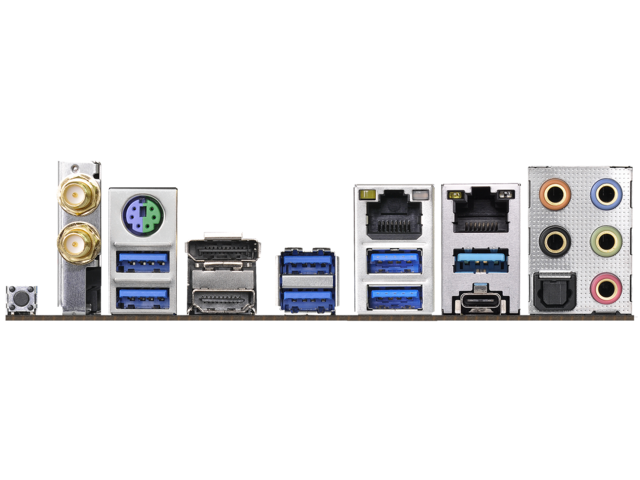

Интерфейси:

• 2 x Antenna Ports
• 1 x PS/2 мишка/клавиатура
• 1 x HDMI порт
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out Port
• 3 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)
• 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• 1 x Clear CMOS Button
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))*
• 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
• 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Конектори:

• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers*
• 1 x Addressable LED Header**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x Thunderbolt™ AIC Connector (5-pin)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)
• 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM1562 Retimer)
• 1 x Performance Mode / Easy OC Header
• 1 x Dr. Debug with LED

Съхранение:

• 6 x SATA3 6.0 Gb/s конектори, поддържащи RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI и Hot Plug
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
•  2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Памет:

• Двуканална технология на паметта DDR4
• 4 x DDR4 DIMM слота
• Поддържа DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, небуферирана памет
• Поддържа ECC UDIMM модули памет (работещи при режим non-ECC)
• Максимален капацитет на паметта: 128GB
• Поддържа Intel Extreme Memory Profile (XMP) 2.0

Wi-FI Bluetooth:

• Intel 802.11ac WiFi Module
• IEEE 802.11a/b/g/n/ac
• Supports MU-MIMO
• Dual-Band (2.4/5 GHz)
• Bluetooth 4.2
