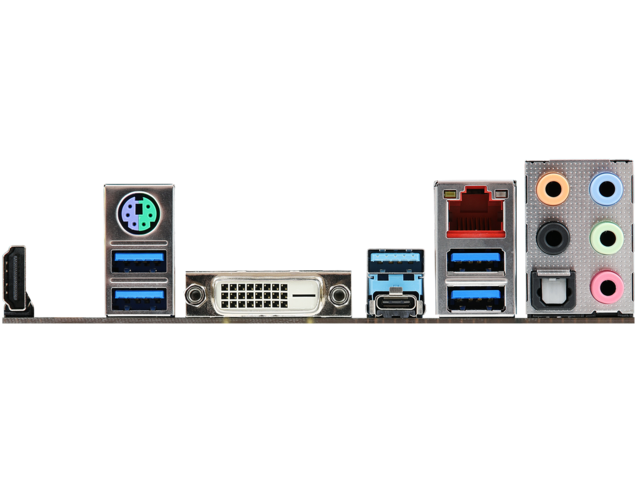

Интерфейси:

• 1 x PS/2 порт за мишка и клавиатура
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.1 Gen2 Type-A Port (ReDriver) (Supports ESD Protection)
• 1 x USB 3.1 Gen2 Type-C Port (ReDriver) (Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (Intel^® Z390) (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
• 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Поддържа AMD Quad CrossFireX и CrossFireX
• Поддържа NVIDIA^® Quad SLI™ и SLI™

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers*
• 1 x Addressable LED Header**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin)
• 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
• 1 x Performance Mode / Easy OC Header

Съхранение:

• 6 x SATA3 6.0 Gb/s конектори, поддържащи RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 Socket (M2_1), supports M Key type  2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Памет:

• Двуканална технология на паметта DDR4
• 4 x DDR4 DIMM слота
• Поддържа DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, небуферирана памет
• Поддържа ECC UDIMM модули памет (работещи при режим non-ECC)
• Максимален капацитет на паметта: 128GB
• Поддържа Intel Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
