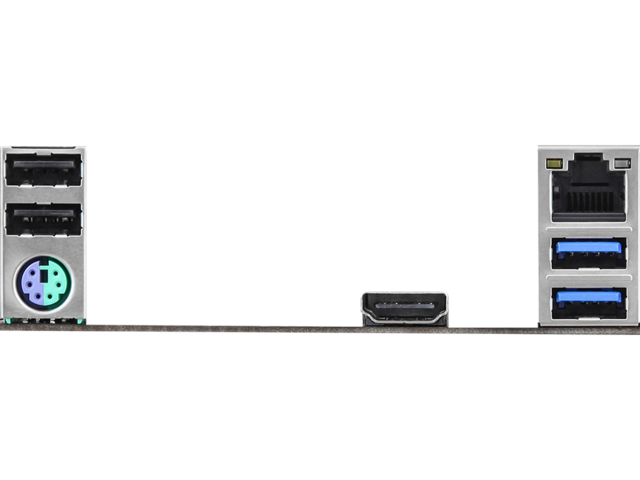

Интерфейс:

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Памет:

• 1x DDR4 DIMM, поддържащи до 32GB системна памет
• Архитектура с две канални памети
• DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, небуферирана памет
• Поддържа ECC UDIMM
• Intel Extreme Memory Profile (XMP) 2.0

Слотове за разширение:

• 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1)
• 1 x Mining Port (M_Port1 at x1)

Съхранение:

• 1 x SATA3 6.0 Gb/s конектор, поддържа NCQ, AHCI и Hot Plug
• 1 x M.2 сокет, поддържа M Key тип 2260/2280/22110 M.2 SATA3 6.0 Gb/s модул

Конектори:

• 1 x System Panel Header

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 1 x CPU Fan Connector (4-pin)*

• 8 x Chassis Fan Connectors (4-pin)**

• 3 x 24 pin ATX Power Connectors

• 1 x 8 pin 12V Power Connector

• 4 x 4 pin PCIe Power Connectors

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

• 1 x Power Button

• 1 x Reset Button
