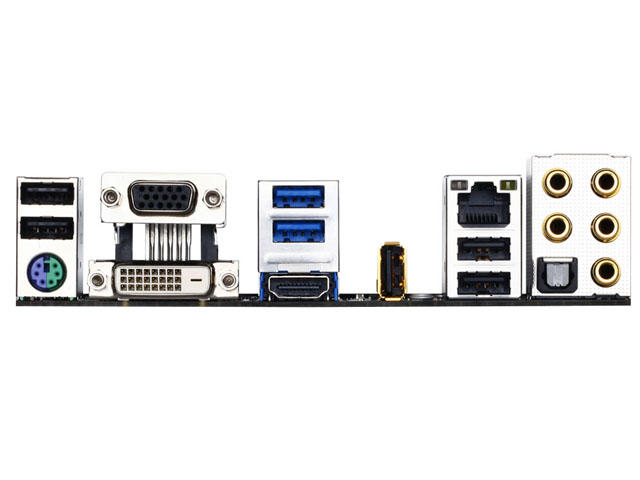

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 2 x USB 3.0/2.0
• 5 x USB 2.0/1.1
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Слотове за разширение:

•  1 x PCI Express x16 слот, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.)(за да поддържаPCI Express 3.0  трявба да има инсталиран FM2+ APU)
• 1 x PCI Express x16 слот, running at x4 (PCIEX4)
• 3 x PCI Express x1 слот(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
• 2 x PCI слот

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 8 x SATA 6Gb/s connectors
• 1 x APU fan header
• 3 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.0/2.0 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Trusted Platform Module (TPM) header
• 2 x gain control switches
