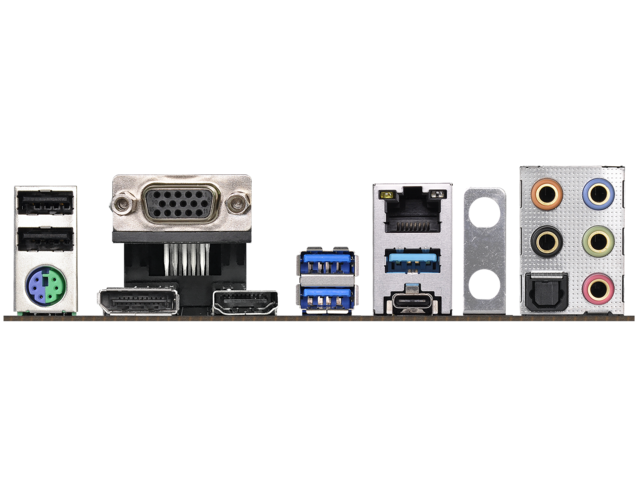

Интерфейси:

• 2 x Antenna Ports
• 1 x PS/2 комбиниран порт за мишка и клавиатура
• 1 x D-Sub
• 1 x HDMI
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out порт
• 2 x USB 2.0 порта (Поддържа ESD Protection)
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Поддържа ESD Protection)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Поддържа ESD Protection)
• 2 x USB 3.1 Gen1 (Поддържа ESD Protection)
• 1 x RJ-45 LAN порт с LED (ACT/LINK LED и SPEED LED)
• HD аудио жака: Line in / Front Speaker / Microphone

Слотове за разширение:

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 1 x Addressable LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x Thunderbolt™ AIC Connector (5-pin)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)

Съхранение:

• 6 x SATA3 6.0 Gb/s конектори, поддържащи RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддържа M Key тип 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/sмодул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)
• 1 x Ultra M.2 Socket (M2_2), поддържа M Key тип 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)
