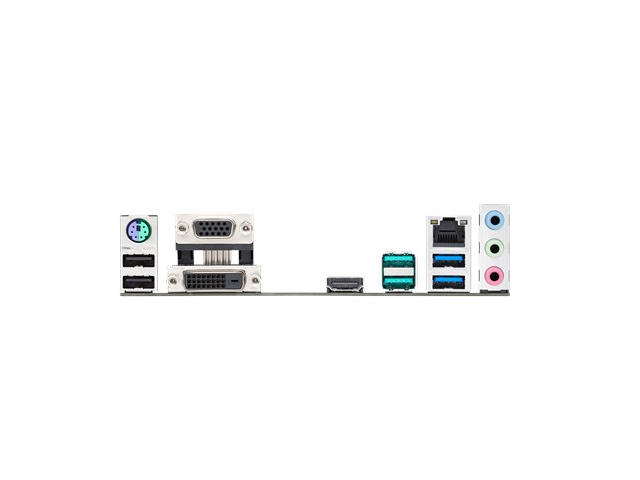

Интерфейси:

• 1 x PS/2 комбиниран порт за мишка и клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45)
• 2 x USB 3.1 Gen 2 (teal blue) up to 10Gbps
• 2 x USB 3.1 Gen 1 (blue) up to 5Gbps,
• 2 x USB 2.0
• 3 x аудио жака

Слотове за разширение:

Конектори:

• 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
• 1 x Mono Out header

Съхранение:

• 1 x M.2 Socket 3, с M Key, тип 2242/2260/2280 поддържани дискови устройства (SATA & PCIE 3.0 X2 режим)
• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s порта, сиви
• Поддържа Raid 0, 1, 5, 10
• Intel Optane Memory Ready
