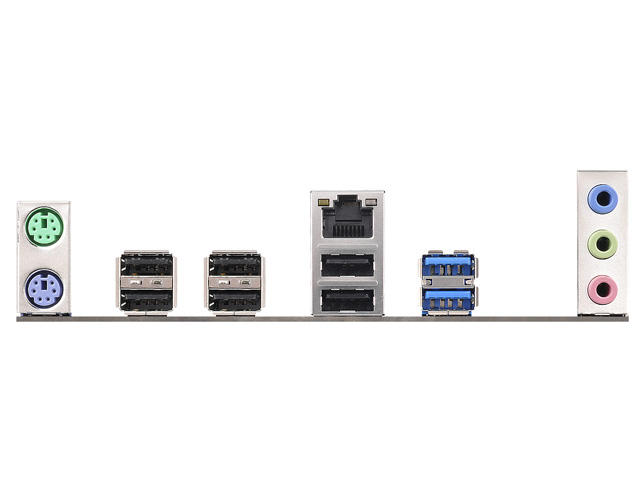

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x USB 3.0 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 2.0 x16 Slots (PCIE2: x16 mode; PCIE3: x4 mode)
• 1 x PCI Express 2.0 x1 Slot
• 1 x PCI Slot

Конектори:

• 1 x IR Header
• 1 x TPM Header
• 1 x Power LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header by Etron EJ188H (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 6 x SATA3 6.0 Gb/s конектори, поддържа RAID (RAID 0, RAID 1, RAID 5 и RAID 10) NCQ, AHCI и Hot Plug

Комплектът включва:

• I/O Shield
• 2 x SATA кабел
