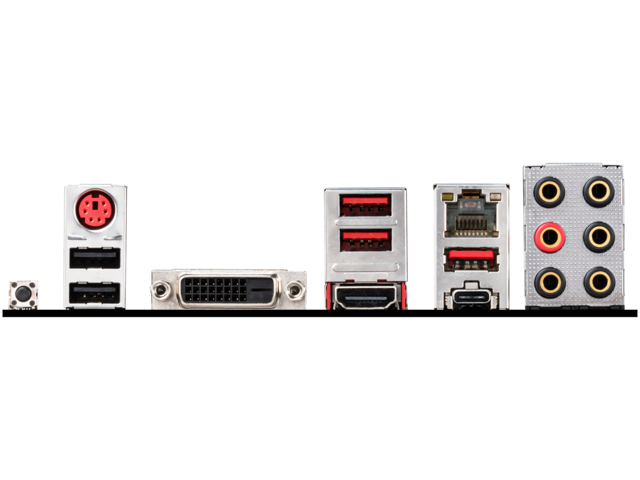

Интерфейси:

• 1x PS/2 комбиниран порт
• 1x HDMI
• 1x DVI-D
• 1x LAN порт
• 2x USB 3.2 Gen 1 5Gbps Type-A
• 1x USB 3.2 Gen 2 10Gbps Type-A+C
• 2x USB 2.0
• Flash BIOS Button
• 6x HD аудио конектора



Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Serial Port connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

Съхранение:

AMD CPU:

• 2 x SATA 6Gb/s порта
• 1 x M.2порта (Key M)
  • Поддържа PCIe 3.0 x4 (1во, 2ро и 3то поколение AMD Ryzen/ Ryzen с Radeon Vega Graphics и 2ро поколение AMD Ryzen с Radeon Graphics) или PCIe 3.0 x2 (Athlon с Radeon Vega Graphics) и SATA 6Gb/s
  • Поддържа 2242/ 2260 /2280/ 22110 дискови устройства

AMD B450 Chipset:

• 4 x SATA 6Gb/s порта
