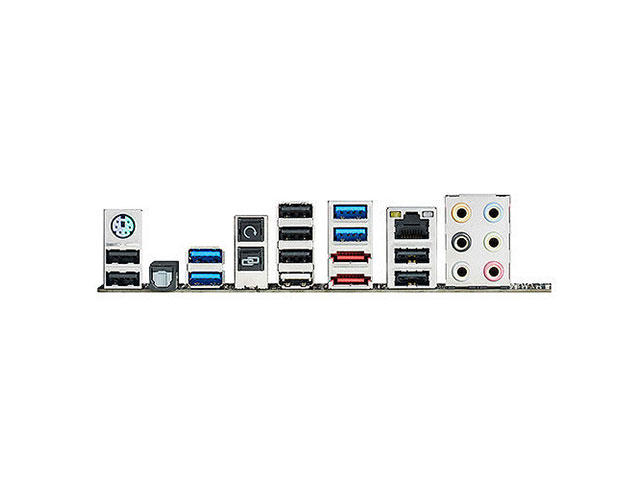

Интерфейси:

• 1x PS/2 keyboard/mouse combo
• 2x eSATA 6Gb/s
• 1x LAN (RJ45)
• 4x USB 3.0
• 8x USB 2.0 (one port can be switched to ROG Connect)
• 6x SATA 6Gb/s
• Поддържа Raid 0, 1, 5, 10
• 1x Optical S/PDIF out
• 6x Audio jacks
• 1x Clear CMOS buttons
• 1x ROG Connect On/ Off switches

Слотове за разширение:

• 3x PCIe 2.0 x16 (dual x16 or x16/x8/x8)
• 1x PCIe 2.0 x16 (x4 mode)
• 2x PCIe 2.0 x1

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 port
• 2x USB 2.0 connector support additional 4 USB 2.0 port
• 1x TPM connector
• 8x SATA 6Gb/s connectors
• 2x CPU Fan connectors
• 3x Chassis Fan connectors
• 3x Optional Fan connectors
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x 4-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel
• 1x DirectKey Button
• 1x DRCT header
• 8x ProbeIt Measurement Points
• 3x Thermal sensor connectors
• 1x EZ Plug connector (4-pin Molex power connector)
• 1x Power-on button
• 1x Reset button
• 1x Go Button
• 1x FastBoot switch

ROG специални характеристики:

• ROG Connect (RC Diagram, RC Remote, RC Poster, GPU TweakIt)

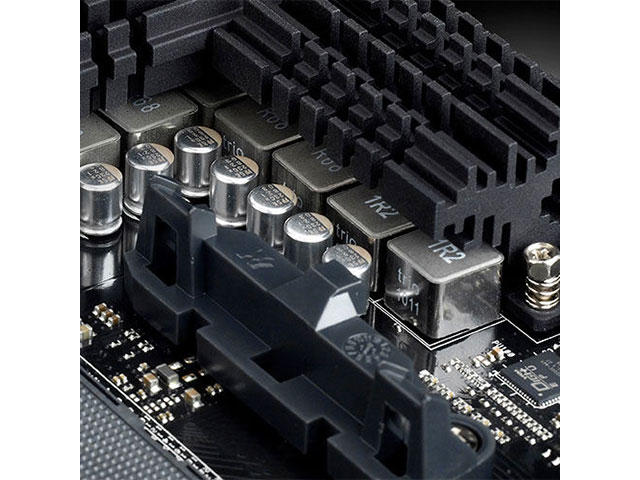

• Extreme Engine Digi+ II (Extreme Engine Digi+ II, 2 -phase Memory power design)
• UEFI BIOS features (ROG BIOS Print, GPU.DIMM Post)

• iROG
• Extreme Tweaker
• Overclocking Protection
