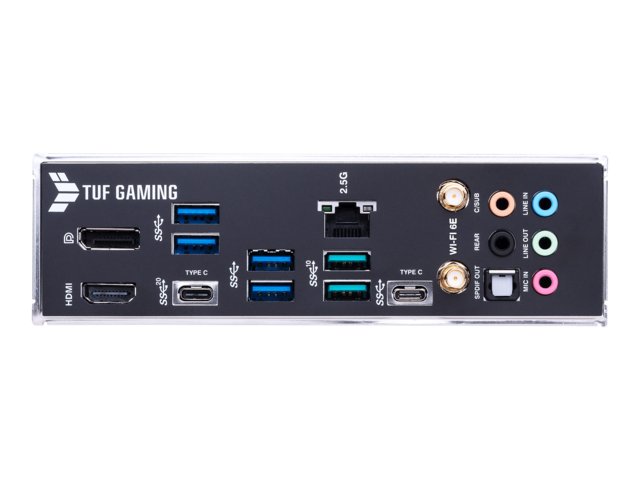

Интерфейс:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Памет:

• C)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/ 2133 Не-ECC, небуферирана памет
• Двуканална архитектура на паметта
• Поддържа Intel® Extreme Memory Profile (XMP)
• OptiMem III

Слотове за разширение:

• Процесори Intel® 12-то поколение:

 -  1 x PCIe 5.0 x16 слот

• Чипсет Intel® Z690:

 -  1 x PCIe 3.0 x16 слот (поддържа x4 режим)

 -  1 x PCIe 3.0 x4 слот

 -  2 x PCIe 3.0 x1 слота

 Съхранение:

• Поддържа 4 x M.2 слота
• 4 x SATA 6Gb/s порта
• Поддържа NVMe RAID 0/1/5, SATA RAID 0/1/5/10

Конектори:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
• Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ header
