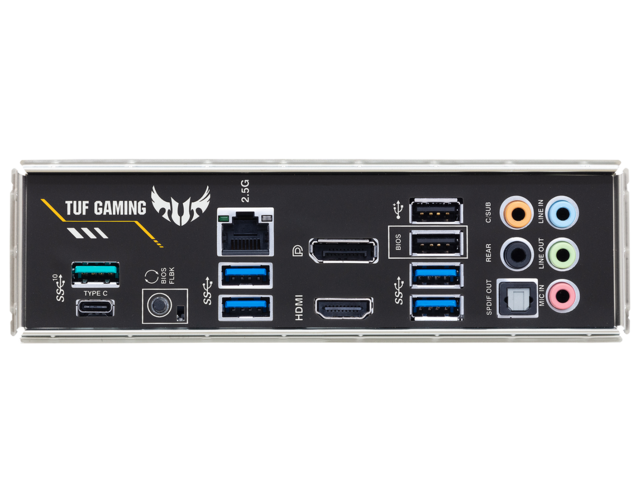

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI порт
• 1 x LAN (2.5G) порта
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 3.2 Gen 2 (син) (1x Type-A+ 1x USB Type-C)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x аудио жака
• 1 x BIOS FlashBack^™ Button(s)

Слотове за разширение:

Конектори:

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 with E key for Wi-Fi module
• 1 x SPI TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

Съхранение:

• 3то поколение AMD Ryzen процесори:
  1 x M.2 Socket 3, с M Key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIe 4.0 x4 режим)
• AMD B550 Chipset:
  1 x M.2 Socket 3, с M Key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  6 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
