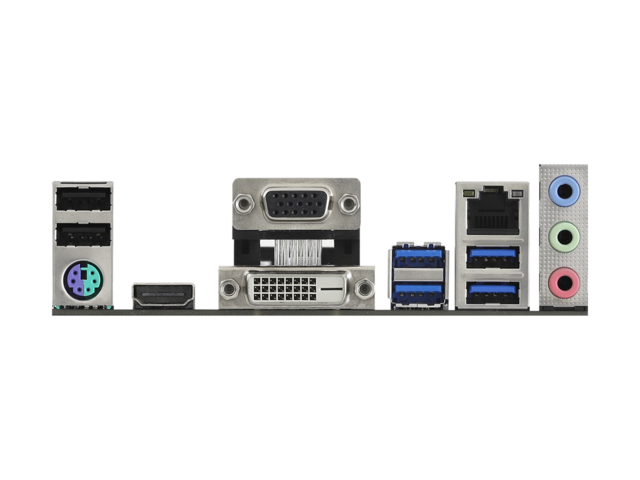

Интерфейс:

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• Двуканална технология за памет DDR4

• 2 x DDR4 DIMM слота

• Макс. капацитет на системната памет: 64GB

• Поддържа модули памет Extreme Memory Profile (XMP)

• 15μ златен контакт в DIMM слотове

Слотове за разширение:

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
• 1 x PCI Express 3.0 x1 Slot

Съхранение:

• 4 x SATA3 6.0 Gb/s конектори, поддържат RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 сокет, поддържа M Key тип 2242/2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Конектори:

• 1 x SPI TPM Header

• 1 x COM Port Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)*

• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
