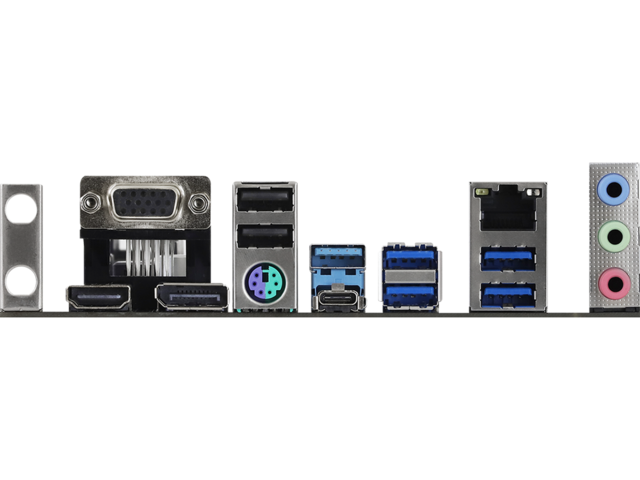

Интерфейс:

• Antenna Bracket
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone



Памет:

• 4 x DDR4 DIMM слота

• Двуканална технология за памет DDR4

• Макс. капацитет на системната памет: 128GB

• Поддържа модули памет Extreme Memory Profile (XMP)

• 15μ златен контакт в DIMM слотове



Слотове за разширение:

• 2x PCI Express 3.0 x16 слота (PCIE1: x16 режим; PCIE2: x2 режим)

• 1x M.2 Socket (Ключ E), поддържа тип 2230 WiFi/BT PCIe WiFi модул



Съхранение:

• 4 x SATA3 6.0 Gb/s конектора, поддържат RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддържа M Key type 2280 M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

• 1 x M.2 Socket (M2_2), поддържа M Key type 2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x2 (16 Gb/s)



Конектори:

• 1 x COM Port Header

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 2 x RGB LED Headers

• 2 x Addressable LED Headers

• 1 x CPU Fan Connector (4-pin)

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
