Мрежови стандарти:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- IPv4
- IPv6
AX5700 максимална AX производителност: 861+4804 Mbps
Скорост на данни:
- 802.11a : up to 54 Mbps
- 802.11b : up to 11 Mbps
- 802.11g : up to 54 Mbps
- WiFi 4 (802.11n) : up to 450 Mbps
- WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
- WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
- WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
- WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Външни антени х 3 бр
Вътрешна PCB антена x 1
Процесор: 2.0GHz quad-core processor
Предаване/Получаване:
Памет: 256MB flash, 1GB RAM
Boost Speed:
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: стандартен и универсален
- 1024-QAM висока скорост на предаване на данни
- 20/40/80/160 MHz честотна лента
Работна честота: 2.4 GHz / 5 GHz

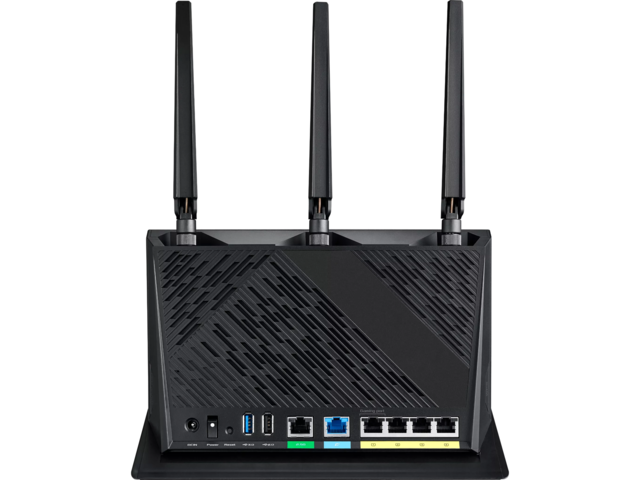

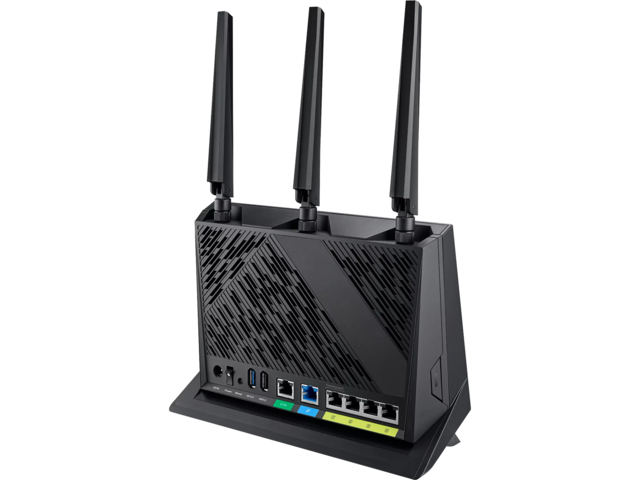

Портове:
- RJ45 for 10/100/1000 BaseT for WAN x 1
- RJ45 for 10/100/1000 BaseT for LAN x 4
- Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
- 2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
- USB 3.2 Gen1 x1, 2.0 x1
Бутони: PS Button, Reset Button, Power Switch, LED on/off Button
Захранване: 19 V с макс. 2,37 A ток / 19,5 V с макс. 2.31 A ток или 12 V с макс. 3 A ток / 19,5 V с макс. 2.31 A ток
AiMesh:
- AiMesh
- Основен AiMesh рутер
- AiMesh възел
Режим за игри
Поддържа Alexa skill
AiProtection:
- AiProtection Pro
- AiProtection
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
Родителски контрол, Персонализиран интернет график
Контрол на трафика
Wireless:
- IPv6
- MU-MIMO
- Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
- UTF-8 SSID
- Guest Network
- Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
- WPS
- WiFi MAC address filter
- Maximum MAC filters : 64
- Wireless scheduler
- Airtime fairness
- RADIUS Client
- Universal beamforming
- Explicit beamforming
WAN:
- Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
- Dual WAN
- WAN Aggregation
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule : 64
- Port triggering
- Maximum port triggering rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
- Let's Encrypt
- Safe browsing
- DNS-over-TLS
LAN:
- DHCP Server
- IPTV
- LAN Link Aggregation
- Manually assign IP address
- Maximum manually assign IP address rule : 64
VPN:
- Instant Guard
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Client WireGuard
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
