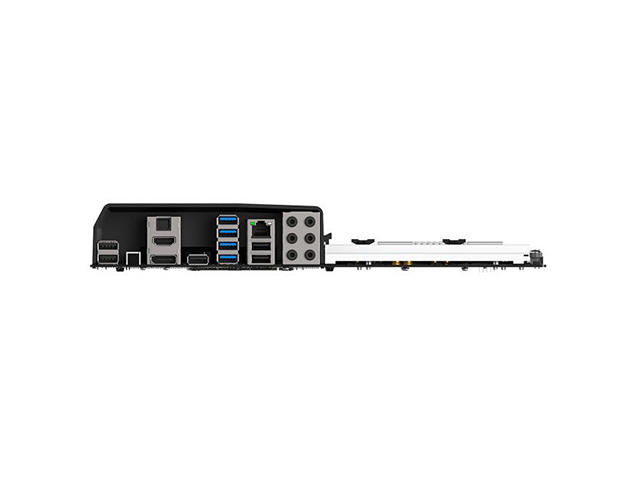

Интерфейси:

• 5 * USB 2.0
• 4 * USB 3.1 Gen 1
• 1 * DisplayPort 1.2
• 1 * HDMI 1.4b
• 1 * Clear CMOS button
• 1 * LAN (RJ45)
• 1 * Optical S/PDIF Out port
• 1 * 7.1-Channel аудио жака

Слотове за разширение:

• 2 * PCIe 3.0 x16 (x16 или двоен x8)
• 2 * PCIe 3.0 x4
• 1 * PCIe 3.0 x1

Конектори:

• 1 * 24-pin EATX power connector
• 1 * 8-pin ATX 12V power connector
• 1 * 4-pin CPU_FAN connector
• 1 * 4-pin AIO_PUMP connector
• 1 * 4-pin W_PUMP connector
• 6 * 4-pin SYS_FAN connectors (Up to 6W per channel)
• 3 * USB 2.0 header (Up to 6 USB 2.0 ports)
• 2 * USB 3.1 Gen1 header (Up to 4 USB 3.1 Gen 1 ports)
• 4 * SATA 6Gb/s connectors
• 1 * M.2 Socket 3 with M Key, (PCIe 3.0 x4 & SATA mode)
• 1 * M.2 Socket 3 with M Key, (PCIe 3.0 x4 mode only)
• 2 * RGB LED connectors
• 1 * Noise detection module
• 1 * Front panel audio connector
• 1 * Power button
• 1 * Reset button
• 1 * ROM backup button
• 1 * Dual BIOS switch

Съхранение:

• Intel Z370 Express Chipset
• 1 * M.2 тип 2242/2260/2280 (PCIe 3.0 x4 & SATA режим)
• 1 * M.2 тип 2242/2260/2280 (PCIe 3.0 x4 режим)
• 4 * SATA 6Gb/s порта
• Поддържа RAID 0/1/5/10
• Поддържа Intel Smart Response Technology
• Intel Rapid Storage Technology 15
• Intel Optane Memory Ready

Памет:

• 4 x DIMM, Max. 64GB, DDR4
• 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, небуферирана памет
• Двуканала архитектура на паметта
• Поддържа Intel Extreme Memory Profile (XMP)
