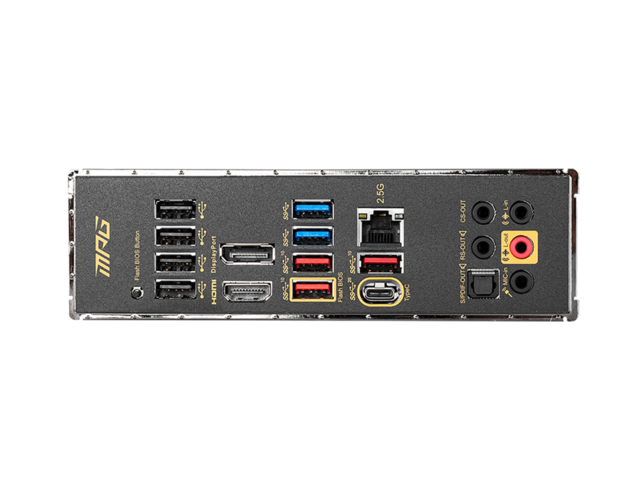

• 4x USB 2.0
• 3x USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2x2 20Gbps Type-C
• 2x USB 3.2 Gen 1 5Gbps Type-A
• HDMI
• DisplayPort
• 2.5G LAN
• 5x Аудио жакове
• Flash BIOS Button
• Optical S/PDIF Out

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

• 3x PCIe x16 слота: Поддържа x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
  • PCI_E1 & PCI_E3 slots (From CPU)
    • Поддържа PCIe 4.0 for 11th Gen Intel^® CPU
    • Поддържа PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E5 слот (From Z590 Chipset)
    • Поддържа PCIe 3.0
• 2x PCIe 3.0 x1 слота (From Z590 Chipset)

Съхранение:

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)- само за 11th Gen Intel CPU; поддржа PCIe 4.0 x4, поддържа 2242/ 2260/ 2280/ 22110
  • M2_2 & M2_3 slot (From Z590 Chipset)
  • Intel Smart Response Technology for Intel^® Core

• Поддържа технология Intel® Smart Response за процесори Intel Core ™

RAID:

Памет:

• 4x DDR4 слотове за памет, поддържащи до 128GB
• Поддържа 1R 2133/ 2666/ 2933 MHz за 10th Gen Intel^® CPU (by JEDEC & POR)
• Поддържа 1R 2133/ 2666/ 2933/ 3200 MHz за 11th Gen Intel^® CPU (by JEDEC & POR)
• Максимална честота на овърклок:

  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Поддържа двуканален режим
• Поддържа non-ECC, небуферирана памет
• Поддържа Intel Extreme Memory Profile (XMP)
