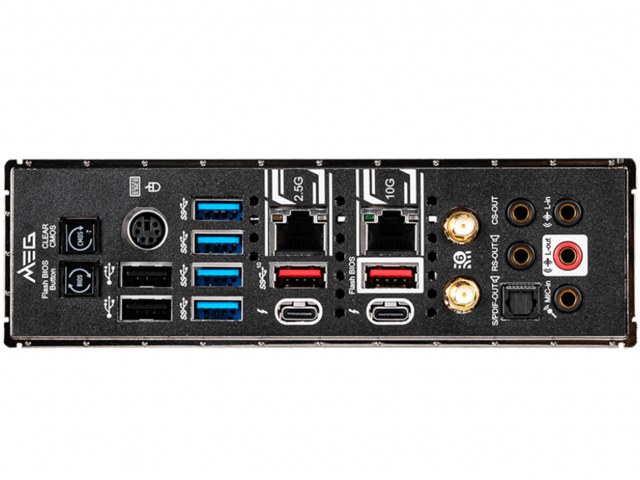

Интерфейси:

• 1 х PS/2 комбиниран порт за мишка и клавиатура
• 1 х 2.5G LAN
• 1 х 10G Super LAN
• 2 х USB 2.0
• 4 x USB 3.2 Gen 1 5Gbps Type A
• 2 x USB 3.2 Gen 2 10Gbps Type A
• 2 x Thunderbolt 3 (40Gbps)
• 1 x Optical S/PDIF OUT
• Wi-Fi /Bluetooth Antenna Connectors
• Clear CMOS Button
• Flash BIOS Button
• 5 х HD аудио конектори

Слотове за разширение:

• 3x PCIe 3.0 x16 слота поддържа x16/ x0/ x4 or x8/ x8/ x4 режим
• 1x PCIe 3.0 x1 слот

Конектори:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin ATX PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 8x 4-pin system fan connectors
• 1x 3-pin Water Flow connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 2-pin Thermal Sensors connectors
• 1x TPM module connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector

Съхранение:

• 6 x SATA 6Gb/s порта
• 3 x M.2 слота (Key M)
  • M2_1 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 дискови устройства
  • M2_2 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 дискови устройства
  • M2_3 поддържа до PCIe 3.0 x4, 2242/ 2260/ 2280 дискови устройства
  • Intel Optane Memory Ready

Памет:

• 4 x DDR4 слотове за памет, поддържащи до  128GB
  • 1DPC 1R Max speed up to 5000+ MHz
  • 1DPC 2R Max speed up to 4400+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Поддържа двуканален режим
• Поддържа non-ECC, небуферирана памет
• Поддържа Intel Extreme Memory Profile (XMP)

WiFi & Bluetooth:

• Intel AX201
• Поддържа 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) до 2.4Gbps
• WiFi 6 Pre-Certified
• Поддържа Bluetooth 5.1 , FIPS, FISMA
• The Wireless module is pre-install in the M2 (Key-E) slot
