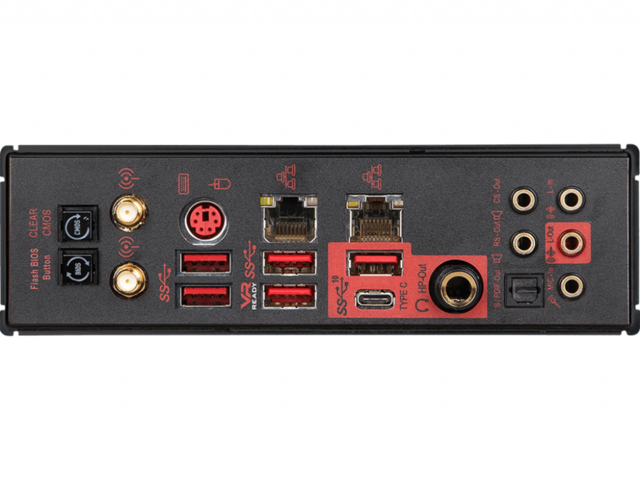

Интерфейси:

• 1 x Clear CMOS Button
• 2 x Wi-Fi /Bluetooth Antenna Connectors
• 1 x PS/2 GAMING Device Port
• 2 x Double Killer™ E2500 Gigabit LAN
• 5 x HD аудио конектори
• 1 х BIOS FLASHBACK+ Button
• 2 х USB 3.1 Gen1 Ports
• 2 х USB 3.1 Gen2 Ports
• 1 х USB 3.1 Gen2 Ports Type-A+C
• 1 х 6.3mm headphone
• 1 х Optical S/PDIF-Out

Слотове за разширение:

• 4 x PCIe 3.0 x16 слота
• 1 x PCIe 3.0 x1 слот

Конектори:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin ATX PCIe power connector
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x U.2 port
• 2 x USB 3.1 Gen2 Type-C ports
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 8 x 4-pin system fan connectors
• 1 x 3-pin Water Flow connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 2 x 2-pin Thermal Sensors connectors
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin CORSAIR LED connector

Съхранение:

• 6 x SATA 6Gb/s порта
• 3 x M.2 слот (Key M)
  • M2_1 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 дискови устройства
  • M2_2 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280 дискови устройства
  • Intel Optane Memory Ready
• 1 x U.2 port
  • Поддържа PCIe 3.0 x4 NVMe

Памет:

• 4 x DDR4 слотове за памет, поддържащи до  64GB
  • Поддържа DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
• Поддържа двуканален режим
• Поддържа non-ECC, небуферирана памет
• Поддържа Intel Extreme Memory Profile (XMP)

Wi-Fi:

• The Wireless module is pre-install in the M2_4 (Key-E) slot
• Supports Wi-Fi 5, 2x2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed.
• Supports Bluetooth^® 5
