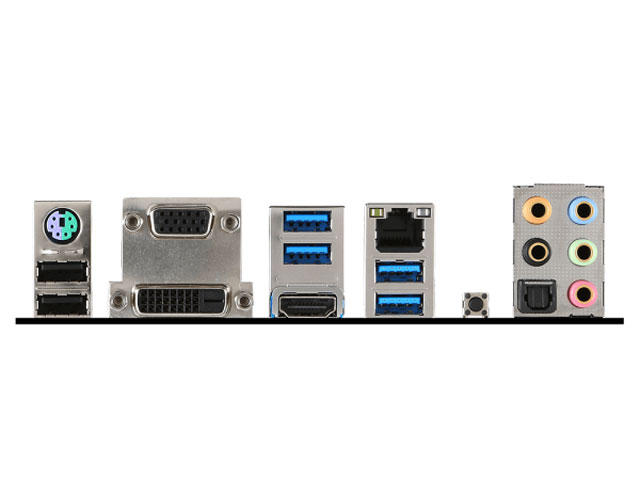

Интерфейси:

•  1 x PS/2 мишка/ клавиатура
•   2 x USB 2.0
•   4 x USB 3.1 Gen1
•   1 x VGA
•   1 x HDMI
•   1 x DVI-D
•   1 x LAN (RJ45)
•   1 x Clear CMOS button
•   1 x Optical S/PDIF OUT connector
•   5 x OFC audio jacks

Слотове за разширение:

•   2 x PCIe 3.0 x16 slots (support x16/x4)*
•   2 x PCIe 3.0 x1 slots
•   1 x M.2 Wi-Fi module slot

 The PCI_E4 slot will only run PCIe 3.0 x2 speed when the PCI_E3 slot is installed a device.

Kонектори:

•  1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Clear CMOS jumper
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector

Съхранение:

•   6 x SATA 6Gb/s

•   1 x SATAe (  SATAe port is backward compatible with SATA.)

•   Supports RAID 0, RAID 1, RAID 5 and RAID 10 (Z170M MORTAR)
•   Supports Intel Smart Response Technology for Intel

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

*7th Gen Intel CPU поддържа DDR4 до 2400; 6^th Gen Intel CPU поддържа DDR4 до 2133.
