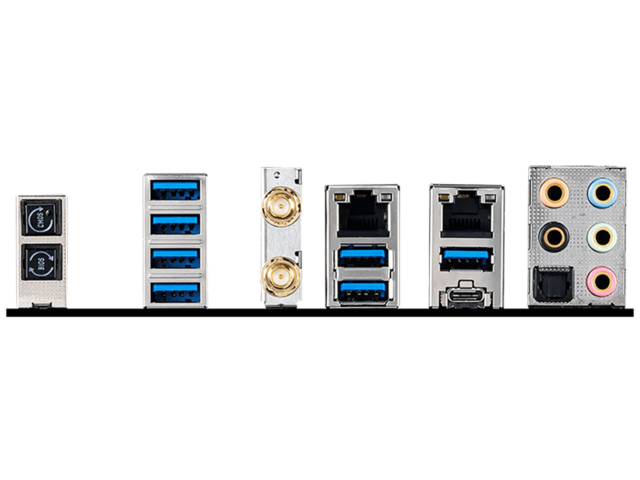

Интерфейси:

• Wireless / Bluetooth
• 2x Gigabit LAN
• 5x аудио конектора
• 4x USB 3.2 Gen1 Type-A
• 3x USB 3.2 Gen2 Type-A
• 1x USB 3.2 Gen2x2 20G Type-C
• Flash BIOS Button

• 1x Clear CMOS Button
• 1x Optical S/PDIF out

Слотове за разширение:

• 4 x PCIe 4.0 x16 слота (поддържа x16/x8/x16/x8 режим)
• 1 x PCIe 3.0 x1 слот

Конектори:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 8x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen2 Type-C port
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump Fan connector (supports up to 2A)
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin 5050 RGB LED connector
• 2x 3-pin ARGB LED connectors
• 1x 3-pin CORSAIR LED connector
• 1x Slow mode booting jumper
• 1x Power button
• 1x Reset button

Съхранение:

• AMD® TRX40 Chipset
• 8 x SATA 6Gb/s порта
• AMD® Processor
• 8 x SATA 6Gb/s порта
• 2 x M.2 слота (Key M)
• M2_1 поддържа PCIe 4.0 x4 и SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• M2_2 поддържа PCIe 4.0 x4 и SATA 6Gb/s 2242/ 2260 /2280 storage devices
