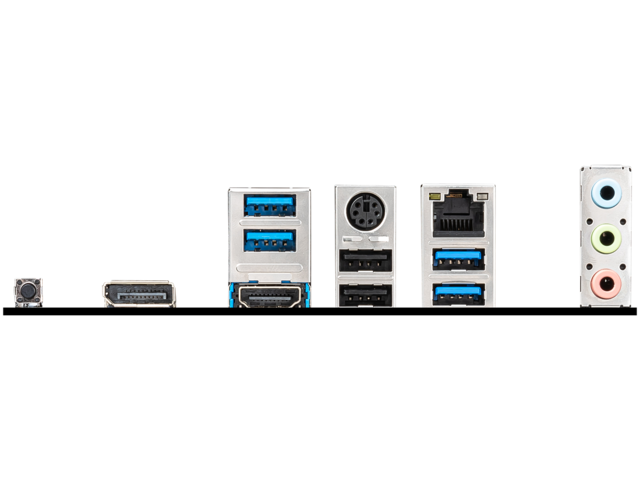

Интерфейси:

• 1 x PS/2 порт за мишка и клавиатура
• 1 x DisplayPort
• 1 x HDMI порт
• 1 x Gigabit LAN порт
• 4 x USB 3.2 Gen 1 5Gbps (Type-A)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 3 x HD Audio Connectors
• Flash BIOS Button

Слотове за разширение:

• 1x PCIe 3.0/ 4.0 x16 слот (PCI_E1)
• 2x PCIe 3.0 x1 слота

Конектори:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

Съхранение:

• 4x SATA 6Gb/s порта
• 2x M.2 слота (Key M)
  • M2_1 slot (from AMD processor)
    Поддържа PCIe 4.0/ 3.0 x4
    Поддържа SATA 6Gb/s
    Поддържа 2242/ 2260/ 2280
  • M2_2 slot (from AMD B550 chipset)
    Поддържа PCIe 3.0x4
    Поддържа 2242/ 2260/ 2280
