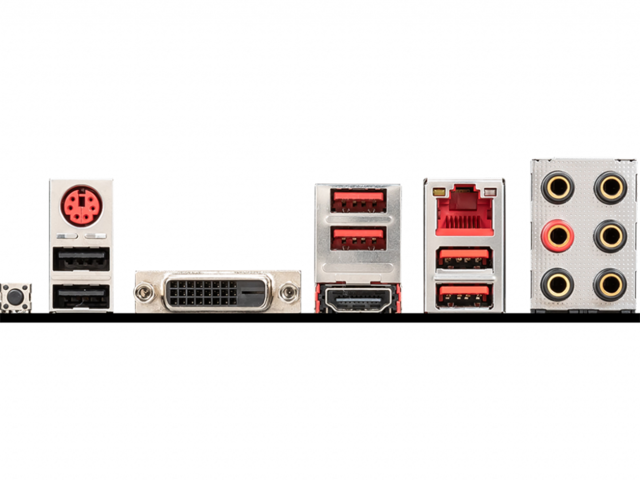

Интерфейси:

• 1 х PS/2 комбо порт
• 2 х USB 3.2 Gen1
• 1 х LAN Port
• 6 х HD аудио конектори
• BIOS Flashback Button
• 2 х USB 2.0 Port
• DVI-D Port
• HDMI Port
• 2 х USB 3.2 Gen2

Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

Съхранение:

AMD CPU:

• 2 x SATA 6Gb/s порта
• 1 x M.2порта (Key M)

  • Поддържа PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 дискови устройства

AMD B450 Chipset:

• 4 x SATA 6Gb/s порта
  • SATA5 и SATA6 портовете ще бъдат недостъпни, когато има инсталирано M.2 устройство в M.2 слота.
