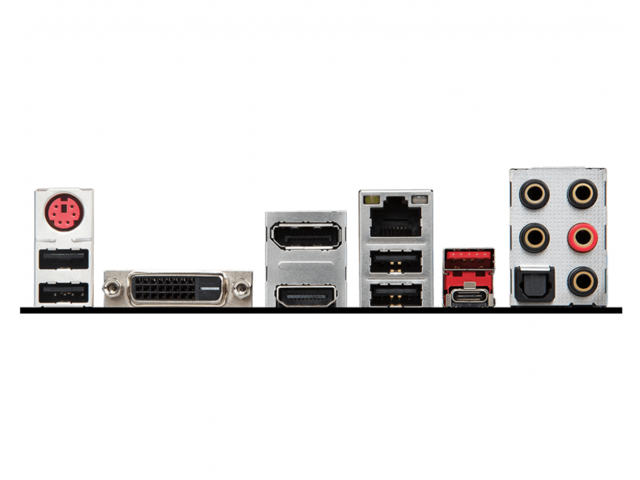

Интерфейси:

• 1 x PS/2 комбиниран порт
• DisplayPort
• LAN Port
• USB 3.1 Gen2 Type A
• 5 х HD аудио конектори
• 2 х USB 2.0 Port
• DVI-D Port
• HDMI Port
• 2 х USB 2.0 Port
• USB 3.1 Gen2 Type C
• Optical S/PDIF OUT

Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen2 Type-C port
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 3 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x 5050 RGB LED strip 12V connector
• 1 x Thunderbolt add-on card connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

Съхранение:

• 4x SATA 6Gb/s порта
• 2x M.2 слота (Key M)
  • M2_1 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 дискови устройства
  • M2_2 поддържа до PCIe 3.0 x4, 2242/ 2260/ 2280 дискови устройства
  • Intel Optane Memory Ready ,поддържа M2_2
