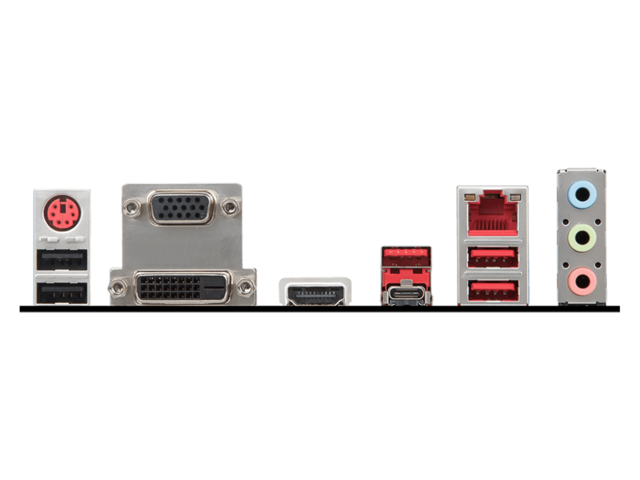

Интерфейси:

• 1 x PS/2 комбиниран порт
• 1 х VGA
• 1 х LAN Port
• 3 х HD Audio Connectors
• 2 х USB 2.0 Port
• 1 х DVI-D
• 1 х HDMI
• 1 х USB 3.1 Gen1 Type A + C
• 2 х USB 3.1 Gen1

Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 1 x RGB LED connector
• 1 x Parallel port connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

Съхранение:

• 6 x SATA 6Gb/s порта
• 1 x M.2 слота (Key M)
  • Поддържа до PCIe 3.0 x4 и SATA 6Gb/s
  • Поддържа 2242/ 2260 /2280/ 22110 дискови устройства
  • Intel Optane Memory Ready
