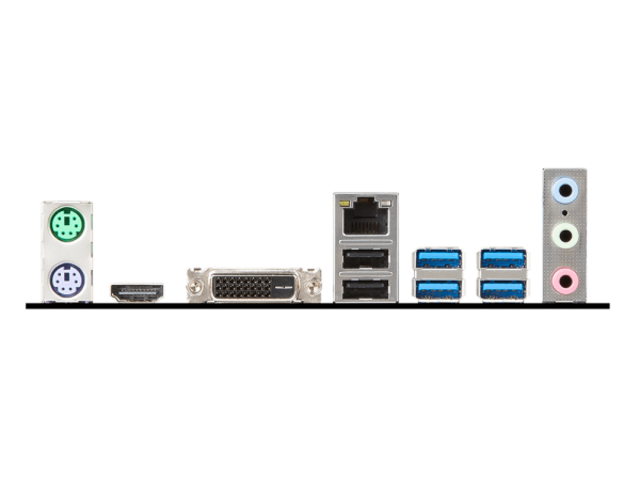

Интерфейси:

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x HDMI port
• 1 x DVI-D port
• 2 x USB 2.0 ports
• 4 x USB 3.1 Gen1 ports
• 1 x LAN (RJ45) port
• 3 x audio jacks

Слотове за разширение:

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1x SATA Express
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Clear CMOS jumper
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x Parallel port connector
