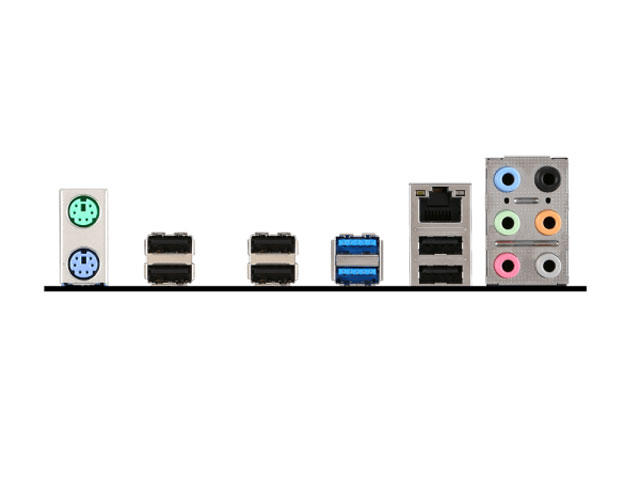

Интерфейси:

•   1 x PS/2 клавиатура
•   1 x PS/2 мишка
•   6 x USB 2.0
•   2 x USB 3.1
•   1 x LAN (RJ45)
•   6 x OFC audio jacks

Слотове за разширение:

•  2x PCIe 2.0 x16 слот

            - PCI_E2 supports up to PCIe 2.0 x16 speed
            - PCI_E4 supports up to PCIe 2.0 x8 speed

•   2x PCIe 2.0 x1 слот

•   2x PCI слот



Конектори:

•   1 x 24-pin ATX main power connector
•   1 x 8-pin ATX 12V power connector
•   6 x SATA 6Gb/s connectors
•   3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
•   1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
•   1 x 4-pin CPU fan connector
•   1 x 4-pin system fan connector
•   1 x 3-pin system fan connector
•   1 x Front panel audio connector
•   2 x System panel connectors
•   1 x Chassis Intrusion connector
•   1 x TPM module connector
•   1 x Serial port connector
•   1 x Clear CMOS jumper
