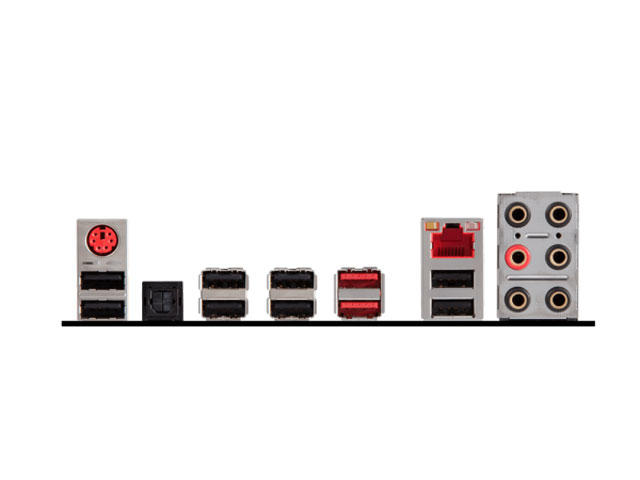

Интерфейси:

• 1x PS/2 мишка/ клавиатура
• 8x USB 2.0
• 2x USB 3.1
• 1x Optical S/PDIF-Out
• 1x LAN (RJ45)
• 6x OFC audio jacks

Слотове за разширение:

•  3x PCIe 2.0 x16 slots
  - PCI_E2, PCI_E5 support up to PCIe 2.0 x16 speed
  - PCI_E4 supports up to PCIe 2.0 x4 speed
•   2x PCIe 2.0 x1 slots
•   1 x PCI slot

Конектори:

•  1 x 24-pin ATX main power connector
•   1 x 8-pin ATX 12V power connector
•  6 x SATA 6Gb/s connectors
• 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
• 1 x USB 3.0 connector
•   1 x 4-pin CPU fan connector
•   2 x 4-pin system fan connectors
•   2 x 3-pin system fan connectors
•   1 x Front panel audio connector
•   2x Front panel connectors
•   1 x Chassis Intrusion connector
•   1 x TPM module connector
•   1 x Serial port connector
•   1x S/PDIF-Out connector
•   1x Clear CMOS jumper
•   1x Slow mode booting switch

Съхранение:

 AMD SB950 Chipset

• 6x SATA 6Gb/s ports
• Поддържа RAID 0, RAID1, RAID5 и RAID 10
