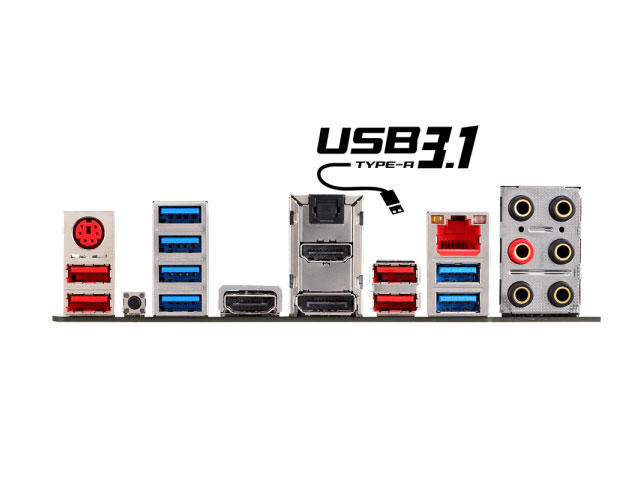

Интерфейси:

• 1x PS/2 клавиатура/мишка
• 1x Clear CMOS бутон
• 1x LAN (RJ45)
• 2x USB 2.0
• 6x USB 3.0
• 2x USB 3.1
• 1x Optical S/PDIF OUT connector
• 6x OFC аудио жакове
• 2x HDMI port, поддържа макс. резолюция - 4096x2160@24Hz, 2560x1600@60Hz
• 1x DisplayPort, поддържа макс. резолюция - 4096X2304@24Hz/ 2560X1600@60Hz/ 3840X2160@60Hz/1920X1200@60Hz
• 6x SATA 6Gb/s - поддържа RAID 0, RAID1, RAID 5 and RAID 10

Слотове за разширение:

• 3x PCIe 3.0 x16 slots, (support x16, x8/x8, x8/x4/x4 modes)

• 4x PCIe 2.0 x1 slots

Конектори:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 8x SATA 6Gb/s connectors
• 1x M.2 port
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
• 2x 4-pin CPU fan connectors
• 3x 4-pin system fan connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Front panel audio connector
• 1x Direct audio power connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 9x V-Check connectors
• 1x Power button
• 1x Reset button
• 1x OC Genie button
• 1x Multi-BIOS switch
• 1x Audio power switch
• 1x 2-Digit Debug Code LED
