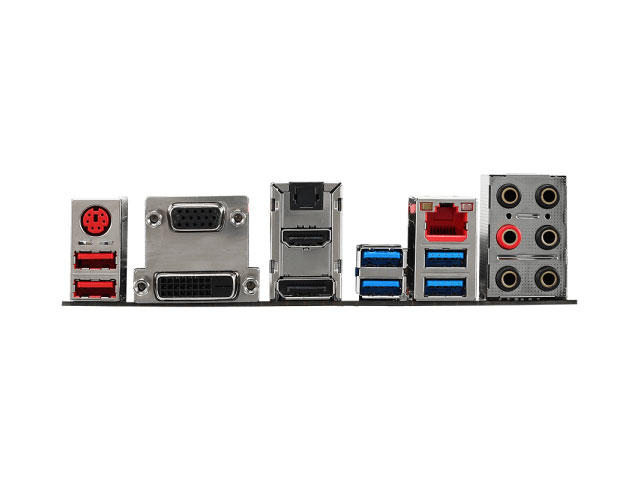

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x LAN (RJ45)
• 2x USB 2.0
• 4x USB 3.0
• 1x VGA, поддържа макс. резолюция - 1920x1200@60Hz
• 1x DVI-D, поддържа макс. резолюция - 1920x1200@60Hz
• 1x HDMI, поддържа макс. резолюция - 4096x2160@24Hz, 2560x1600@60Hz
• 1x DisplayPort, поддържа макс. резолюция - 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,1920x1200@60Hz
• 6x OFC аудио жакове
• 1x Optical S/PDIF OUT connector
• 6x SATA 6Gb/s - поддържа RAID 0/1/5/10

Слотове за разширение:

• 1x PCIe 3.0 x16 slot (PCI_E2, supports x16 speed)
• 1x PCIe 2.0 x16 slot (PCI_E4, supports x4 speed)
• 2x PCIe 2.0 x1 slots
• 3x PCI slots

Конектори:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
• 2x 4-pin CPU fan connectors
• 3x 4-pin system fan connectors
• 1x Clear CMOS jumper
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Parallel port connector
• 1x Chassis Intrusion connector
• 1x Direct audio power connector
• 1x Audio power switch
