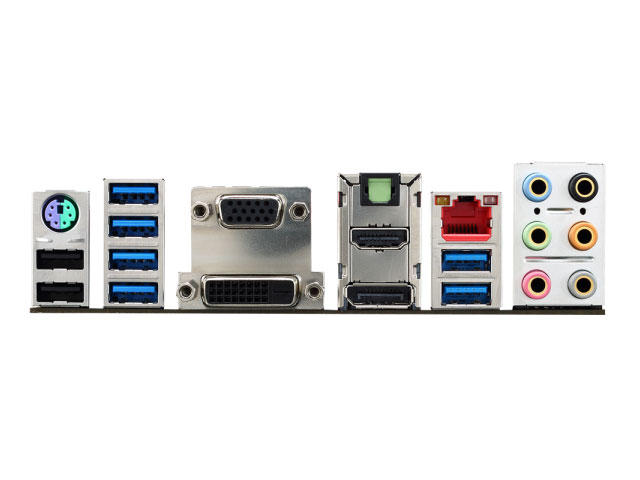

Интерфейси (заден панел):

• 1x PS/2 keyboard/ mouse combo port
• 2x USB 2.0 ports
• 6x USB 3.0 ports
• 1x VGA port
• 1x DVI-D port
• 1x HDMI port
• 1x DisplayPor
• 1x Optical S/PDIF-Out connector
• 1x LAN (RJ45) port
• 6x audio jacks
• 8x SATA 6Gb/s -  поддържа RAID 0/1/5/10

Слотове за разширение:

• 3 x PCIe x16 slots

- PCI_E2 supports PCIe 3.0 x16 speed (поддържа се само от FM2+ процесор)
- PCI_E5 supports PCIe 3.0 x8 speed (поддържа се само от FM2+ процесор)
- PCI_E6 supports PCIe 2.0 x4 speed

• 3 x PCIe 2.0 x1 slots**
• 1 x PCI slots

Конектори:

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

• 8x SATA 6Gb/s connectors

• 3x USB 2.0 connectors (supports additional 6 USB 2.0 ports)

• 1x USB 3.0 connector

• 1x 4-pin CPU fan connector

• 2x 4-pin system fan connectors

• 2x 3-pin system fan connectors

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

• 1x Serial port connector

• 1x Clear CMOS jumper

• 1x OC Genie button

• 1x Power button

• 1x Reset button

• 1x OC Genie mode switch

• 1x Slow mode booting switch

• 1x 2-Digit Debug Code LEDs
