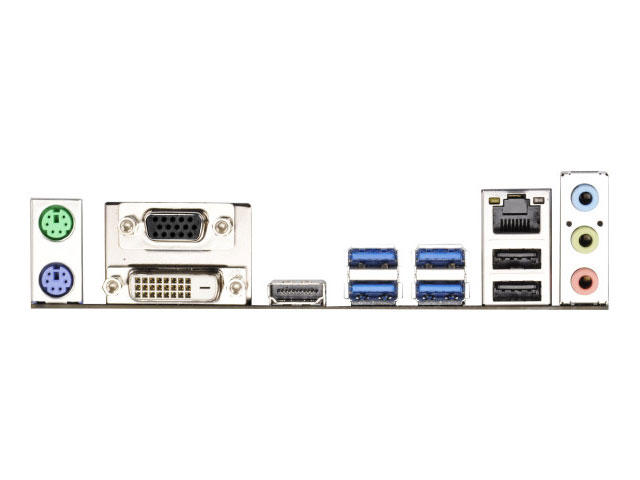

Интерфейси:

• 1x PS/2 порт за мишка
• 1x PS/2 порт за клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 2x USB 2.0
• 4x USB 3.0
• 1x RJ-45
• HD Audio Jack: Line in / Front Speaker / Microphone
• 1x SATA3 6.0 Gb/s конектор за Intel B75, поддържащ NCQ, AHCI and Hot Plug функции
• 2x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, поддържащ NCQ, AHCI and Hot Plug функции

Слотове за разширение:

• 1x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
• 1x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
• 2x PCI slots
• Поддържа AMD Quad CrossFireX and CrossFireX


Конектори:

• 5x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
• 3x SATA3 6.0 Gb/s connectors
• 1x IR header
• 1x CIR header
• 1x Print port header
• 1x COM port header
• 1x CPU Fan connectors (1 x 4-pin)
• 1x Chassis Fan connectors (1 x 4-pin)
• 1x Power Fan connector (3-pin)
• 24 pin ATX power connector
• 4 pin 12V power connector
• Front panel audio connector
• 2x USB 2.0 headers (support 4 USB 2.0 ports)
