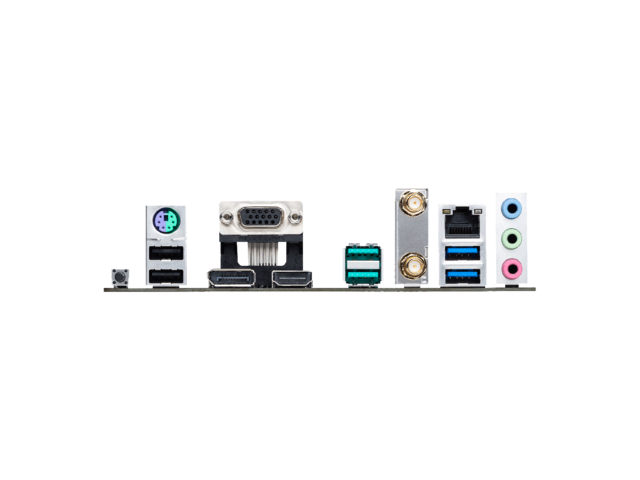

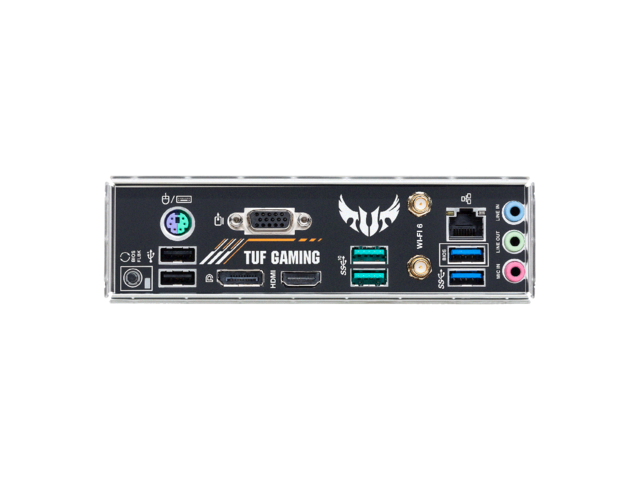

Интерфейси:
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x ASUS Wi-Fi Module
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x PS/2 Keyboard/Mouse combo port
Wireless & Bluetooth:
- Intel® Wi-Fi 6 AX200
- 2x2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) поддържа 1024QAM / OFDMA / MU-MIMO
- Поддържа до 2.4Gbps максимална скорост на предаване на данни
- Поддържа 2,4 / 5GHz Dual-Band
- Поддържа честотна лента на канала: HT20 / HT40 / HT80 / HT160
- Поддържа интерфейс PCIe
- Bluetooth v5.1
Съхранение:
Поддържа 2 x M.2 слота и 4 x SATA 6Gb/s порта
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Support RAID 0, RAID 1, RAID 10
Слотове за разширение:
- 1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
-
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
-
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
-
2 x PCIe 3.0 x1 slots
Конектори:
Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Памет:
- 4x DDR4 (Dual channel)
- Max Memory Size:128GB
-
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
-
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors:
4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
-
Двуканална архителтура на паметта
