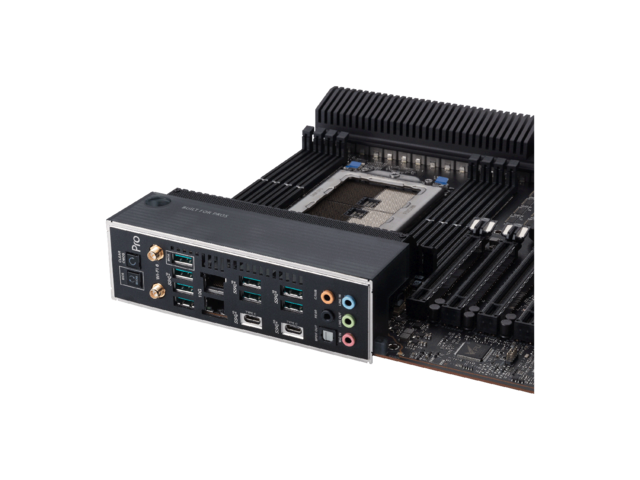

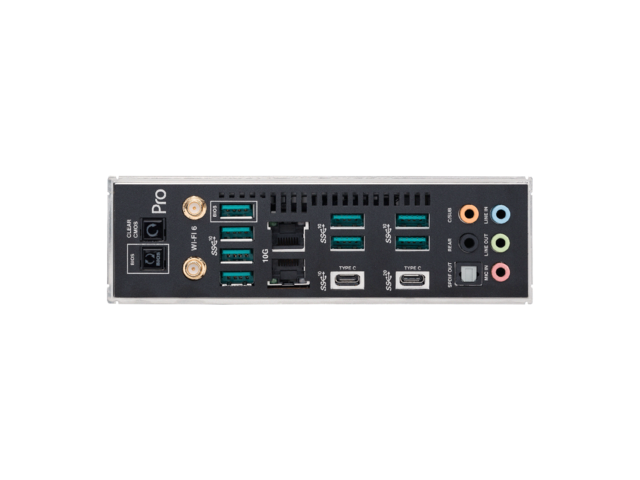

Интерфейс:

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
• 1 x ASUS Wi-Fi Module
• 2 x Intel® X550-AT2 dual 10Gb Ethernet ports
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

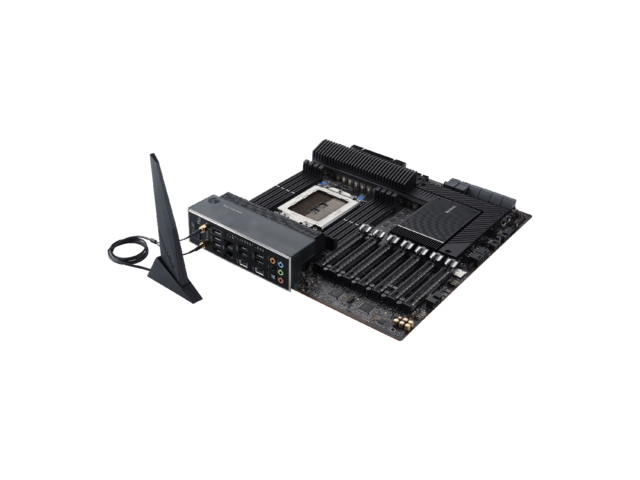

Wi-Fi & Bluetooth:

• Intel® Wi-Fi 6 AX200
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
• Поддържа до 2.4Gbps макс. скорост на педаване
• 2.4/5GHz Dual-Band
• Channel bandwidth: HT20/HT40/HT80/HT160
• PCIe interface
• Bluetooth v5.1

 Памет:

• Канали на паметта: 8DDR4 (осем канала)
• Максимален размер на паметта: 2048GB
• 8 x DIMM, макс. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC и Non-ECC, буферирана и небуферирана, U-DIMM, R-DIMM и 3DS R-DIMM памет*
• Архитектура на 8 -канална памет

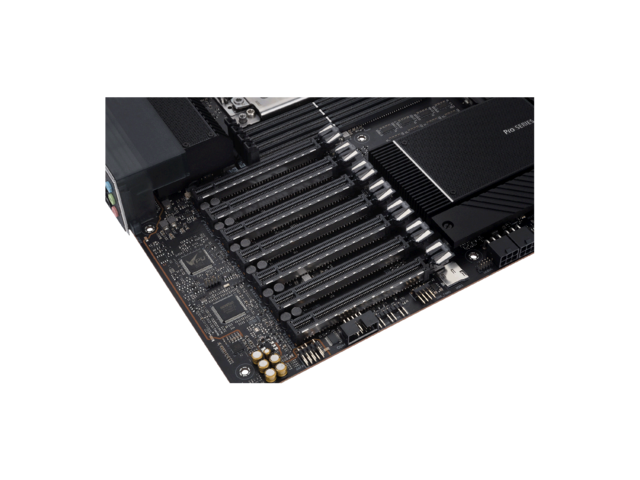

Слотове за разширение:

• AMD Ryzen™ Threadripper™ PRO: 7 x PCIe 4.0/3.0 x16 slot(s)

Съхранение:

• Поддържа 3 x M.2 slots and 8 x SATA 6Gb/s
  AMD Ryzen™ Threadripper™ PRO:
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
• AMD WRX80 Chipset:
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
  4 x SATA 6Gb/s ports
• ASMedia ASM1061 контролер:
  4 x SATA 6Gb/s
  Поддържа NVMe RAID конфигурация чрез M.2

Конектори:

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 6 x 4-pin Chassis Fan header(s)
• 1 x VRM heatsink Fan header
• 1 x Chipset Fan header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 2 x 6-pin PCIe Graphics Card connector
• 1 x 8-pin PCIe Power connector
• 3 x M.2 slots (Key M)
• 8 x SATA 6Gb/s ports
• 2 x U.2 slots
• 1 x BMC switch
• 1 x IPMI switch
• 1 x Messange LED header
• 1 x Micro SD card socket
• 2 x LAN LED header(s)
• 1 x Location LED header
• 1 x Location button header
• 1 x PSU_SMB header
• 1 x SMART_PSU switch
• 1 x VGA switch
• 1 x VGA header
• 1 x VPP_I2C header
• 1 x COM Port header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x Start button
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x RTC Battery header
• 1 x Thermal Sensor header
