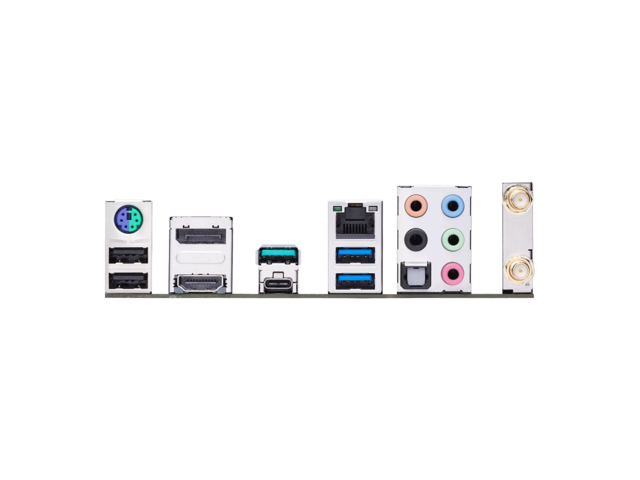

Интерфейс:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port

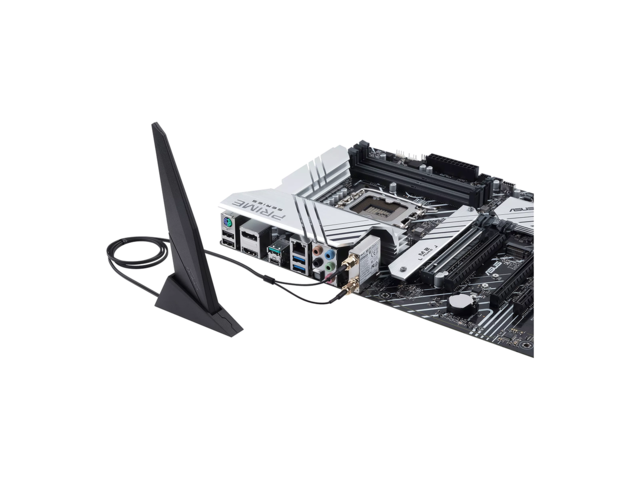

- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x PS/2 Keyboard/Mouse combo port
Wireless & Bluetooth:
- Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Поддържа честотна лента 2.4/5GHz
- Bluetooth v5.2
Памет:
- 4 x DIMM, макс. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, небуферирана памет
- Двуканална архитектура на паметта
- Поддържа Intel® Extreme Memory Profile (XMP)
- OptiMem II
Слотове за разширение:
- Процесори Intel® 12-то поколение:
- 1 x PCIe 5.0/4.0/3.0 x16 слот
- 1 x PCIe 4.0/3.0 x16 слот (supports x4 mode)
- 2 x PCIe 3.0 x16 слот
- 1 x PCIe 3.0 x1 слота
Съхранение:
- Поддържа 3 x M.2 слота
- 4 x SATA 6Gb/s порта
- Поддържа NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Конектори:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header
