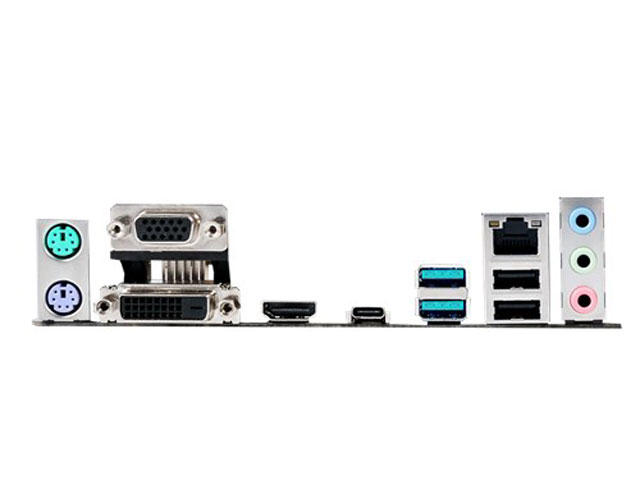

Интерфейси:
- 1 x PS/2 мишка
- 1 x PS/2 клавиатура
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45)
- 1 x USB 5Gb/s Type-C ( поддържа 3A power output )
- 2 x USB 3.1Type-A
- 2 x USB 2.0
- 3 x Аудио жака
Слотове за разширение:
- 1 x PCIe 3.0/2.0 x16 (x16 mode)
- 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- 2 x PCIe 3.0/2.0 x1
- 2 x PCI
Конектори:
- 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
- 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (2 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
Съхранение:
Intel Z170 chipset :
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 1 x SATA Express порт , gray, Compatible with 2 x SATA 6.0 Gb/s ports
- 6 x SATA 6Gb/s порта
- Поддържа Raid 0, 1, 5, 10
- Поддържа Intel Smart Response Technology
Памет:
- 4 цокъла DDR4 DIMM , поддържащи до 64GB системна памет
- Поддръжка на модули памет DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
*7th Gen Intel CPU поддържа DDR4 до 2400; 6th Gen Intel CPU поддържа DDR4 до 2133.

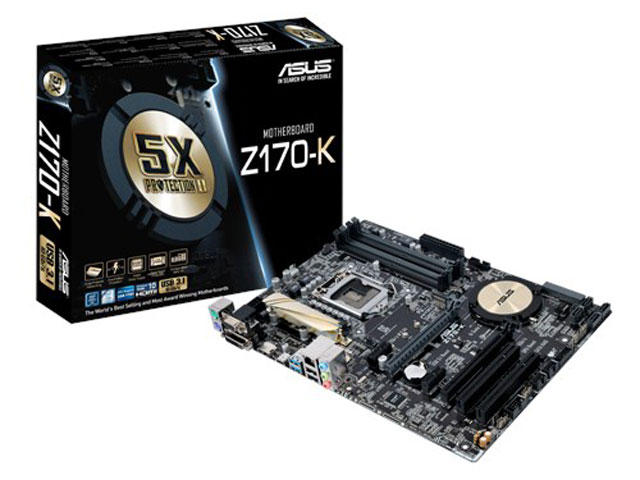

Комплектът включва:
- I/O Shield
- 2 x SATA 6Gb/s кабел
- 1 x M.2 Screw Package
