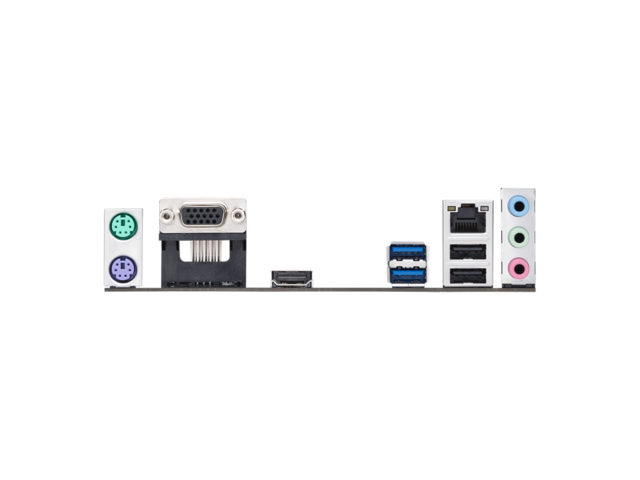

Интерфейс:

• 1 x PS/2 клавиатура (purple)
• 1 x PS/2 мишка (green)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45)
• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 3 x аудио жакове

Памет:

• 2 x DIMM, макс. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, небуферирана памет
• Двуканална архитектура на паметта
• Поддържа Intel® Extreme Memory Profile (XMP)
• OptiMem

Конектори:

• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x Speaker connector

Съхранение:

• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 поддръжка на устройства за съхранение (режим SATA & PCIE 3.0 X2)
• 4 x SATA 6Gb/s

Слотове за разширение:

• Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
• Intel® H410 Chipset
  2 x PCIe 3.0 x1
