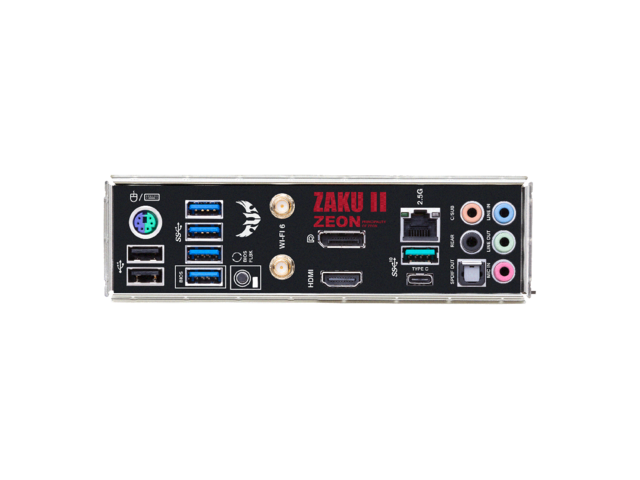

Интерфейси:

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (2.5G) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C^®)
• 2 x USB 2.0
• 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack^™)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x BIOS FlashBack^™ Button(s)
• 1 x ASUS Wi-Fi Module

Слотове за разширение:

• AMD Ryzen™ 5000 / 3000: 1 x PCIe 4.0 x16 (x16 mode)
• AMD Ryzen™ 4000 G: 1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset:
  1 x PCIe 3.0 x16 (x4 mode)
  1 x PCIe 3.0 x1

Конектори:

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector

Съхранение:

• 2 x M.2 slot(s) and 4 x SATA 6Gb/s
• AMD Ryzen™ 5000 / 3000: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes)
• AMD Ryzen™ 4000 G: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes)
• AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)
• 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

Памет:

• AMD Ryzen™ 5000 / 3000:  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• AMD Ryzen™ 4000 G: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• Двуканална архитектура на паметта

• Поддръжката на ECC памет (режим ECC) варира в зависимост от процесора
