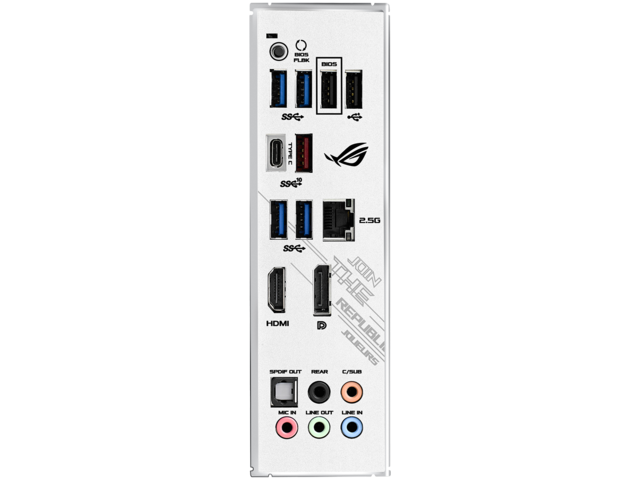

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI порт
• 1 x Intel I225-V 2.5Gb Ethernet
• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 3.2 Gen 2 (1x Type-A + 1x USB Type-C)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x позлатени аудио жака
• 1 x BIOS FlashBack^™ Button(s)

Конектори:

• 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

• 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

• 1 x Thunderbolt header(s)

• 1 x CPU Fan connector(s)

• 1 x CPU OPT Fan connector(s)

• 3 x Chassis Fan connector(s)

• 1 x AIO_PUMP connector

• 1 x AAFP connector

• 2 x Aura RGB Strip Header(s)

• 1 x Addressable Gen 2 header(s)

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

• 6 x SATA 6Gb/s connector(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x 8-pin ATX 12V Power connector(s)

• 1 x 4-pin ATX 12V Power connector(s)

• 1 x System panel(s)

• 1 x Thermal sensor connector(s)

• 1 x Clear CMOS jumper(s)

Съхранение:

• AMD Ryzen 4000 G-серии процесори:
  AMD Ryzen 5000 / 3000 серии десктоп процесори:
  1 x M.2_1 socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  1 x M.2_2 socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  Поддържа 2 x M.2 слота и 6 x SATA 6Gb/s порта
  1 x M.2_1 socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIe 4.0 x4 режим)
  AMD B550 Chipset :
  Поддържа Raid 0, 1, 10
  6 x SATA 6Gb/s порта
