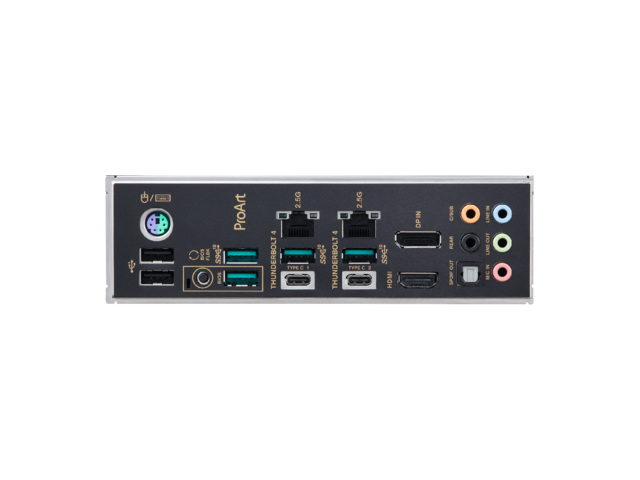

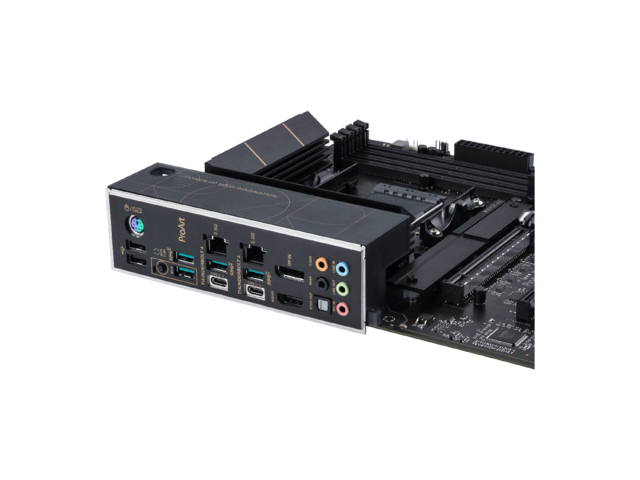

• 2 x Thunderbolt 4 USB Type-C
• 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI
• 2 x Intel® I225-V 2.5Gb Ethernet ports
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Слотове за разширение:

• 2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 2 x PCIe 4.0 x16 (x16 or dual x8)*
• AMD RyzenTM 4000 G-Series Processor: 2 x PCIe 3.0 x16 (x16 or dual x8)
• AMD B550 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode);  2 x PCIe 3.0 x1 slots

Конектори:

• 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
• Fan and Cooling related

  1 x 4-pin CPU Fan header(s)

  1 x 4-pin CPU OPT Fan header(s)

  1 x 4-pin AIO Pump header(s)

  4 x 4-pin Chassis Fan header(s)

• Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  1 x 4-pin +12V Power connector

• Storage related

  2 x M.2 slots (Key M)

  4 x SATA 6Gb/s ports

  USB

  1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

  1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

• Miscellaneous

  2 x AURA Addressable Gen 2 header(s)

  2 x AURA RGB header(s)

  1 x Clear CMOS header

  1 x COM Port header

  1 x Front Panel Audio header (AAFP)

  1 x Speaker header

  1 x SPI TPM header (14-1pin)

  1 x 20-5 pin System Panel header

  1 x Thermal Sensor header

Съхранение:

• Поддържа 2 x M.2 слота и 4 x SATA 6Gb/s порта
• Общо 2 x M.2 слота и  4 x SATA 6Gb/s порта

  AMD Ryzen™ 5000 / 3000 серии: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

  AMD RyzenTM 4000 G серия: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

  AMD B550 Chipset:

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

• 4 x SATA 6Gb/s ports

• Supports RAID 0, 1, 10

Памет:

• AMD Ryzen™ 5000 / 3000 серии: DDR4

4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

• AMD RyzenTM 4000 G серии: DDR4

5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

• OptiMem II
• Двуканална архитектура

• Поддръжката на ECC памет (режим ECC) варира в зависимост от процесора
