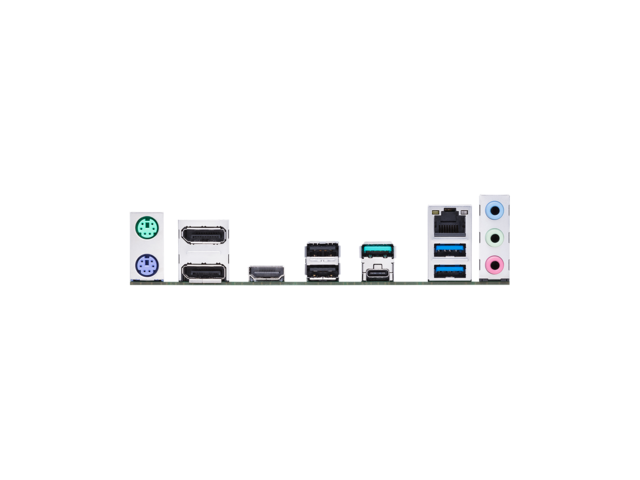

Интерфейси:

• 1 x Realtek® RTL8111H
• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 2 x DisplayPort
• 1 x HDMI
• 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)
• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)

Конектори:

• 1 x CPU Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
• 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 with E key for Wi-Fi module
• 1 x LPT header
• 4 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x SMBus header(s)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
• 1 x Chassis intrusion header
• 1 x LPC Debug header
• 1 x Speaker connector

Слотове за разширение:

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
  1 x PCIe 4.0 x16 (x16 mode) *
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
  1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset
  1 x PCIe 3.0 x4 *¹
  1 x PCI

Съхранение: 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

• AMD B550 Chipset :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s)

• Support Raid 0, 1, 10

Памет:

• 4 x DIMM, макс. 128 GB, DDR4 4866 (OC) / 4800 (OC) / 4600 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 ( OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz без буфери Памет
• Двуканална архитектура на паметта
• Поддръжката на ECC памет (режим ECC) варира в зависимост от процесора
