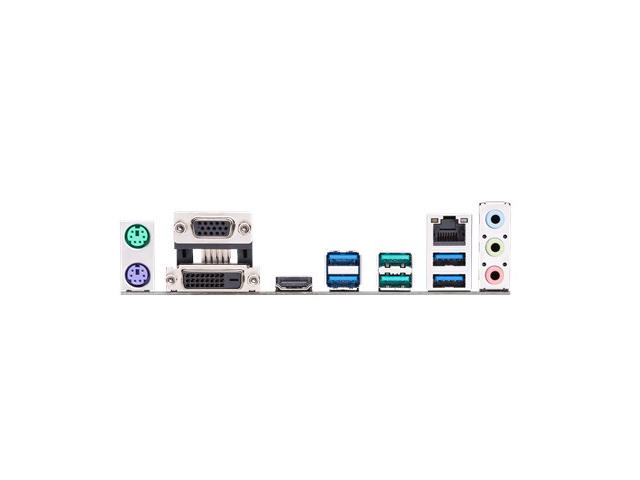

Интерфейси:

• 1 x PS/2 порт за клавиатура (лилав)
• 1 x PS/2 порт за мишка (зелен)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 2
• 4 x USB 3.1 Gen 1
• 3 x аудио жака

Слотове за разширение:

Конектори:

• 1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x Speaker connector

Съхранение:

• AMD B450 chipset:
  4 x SATA 6Gb/s порта, сиви
  Поддържа Raid 0, 1, 10
• AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  2 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 10
• AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors:
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
