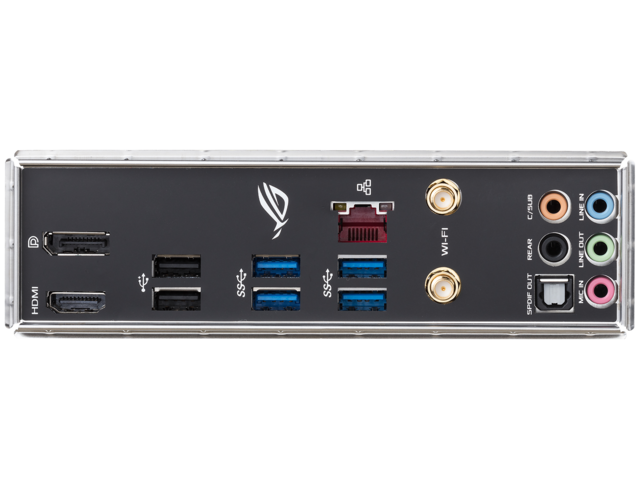

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 4 x USB 3.1 Gen 1
• 2 x USB 2.0
• 0 x Optical S/PDIF out
• 5 x аудио жака
• 1 x Wi-Fi antenna port(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x1 (x16 режим)

Конектори:

• 1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Съхранение:

• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (SATA & PCIE режими)
• 1 x M.2 Socket 3, с M key, тип 2242/2260/2280 поддържани дискови устройства (PCIE 3.0 x 4 режим)
• 4 x SATA 6Gb/s порта
• Intel Rapid Storage Technology 15 support
• Intel Optane Memory Ready

Комплектът включва:

• I/O Shield
• 2 x SATA power cable
• 2 x M.2 screws
• 1 x pack of cable tie
• 1 x Supporting DVD
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x ROG Strix stickers
• 1 x 10-in-1 ROG cable label
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Panel cable

Wi-Fi и Bluetooth:

• Wi-Fi 802.11 a/b/g/n/ac
• Поддържа двубандова честота 2.4/5 GHz
• Поддържа MU-MIMO
• Bluetooth V4.1
