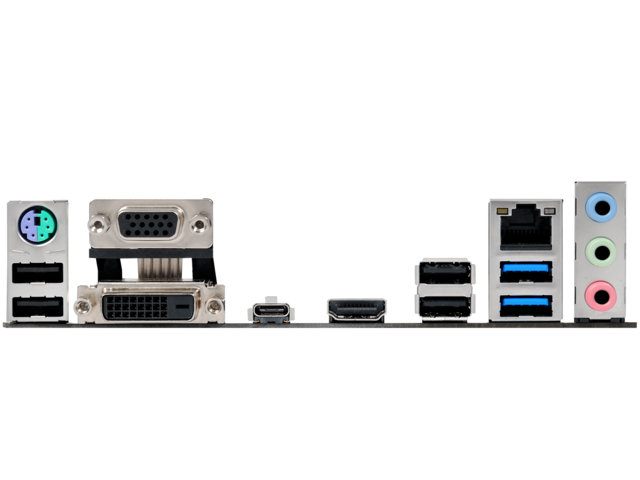

Интерфейси:

• 1 x PS/2 порт за клавиатура (лилав)
• 1 x PS/2 порт за мишка (зелен)
• 1 x DVI-D
• 1 x D-Sub
• 1 x LAN (RJ45)
• 4 x USB 3.0 (blue) Type-A
• 2 x USB 2.0
• 1 x 8-channel Audio I/O

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16 (x16 режим)
• 2 x PCIe 3.0/2.0 x1

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

Съхранение:

• 1 x M.2 Socket 3
• 6 x SATA 6Gb/s порта (сиви)

Комплектът включва:

• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 screws
• 1 x SCD

Аудио:

• Realtek ALC887 8-Channel High Definition Audio CODEC
