Интерфейси:

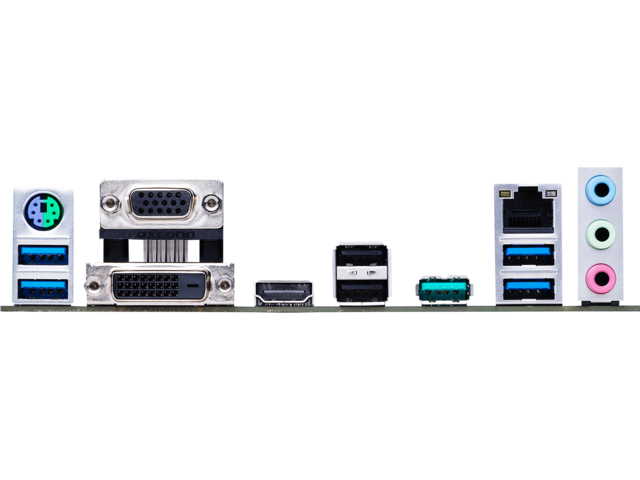

• 1 x PS/2 комбиниран порт за мишка/ клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45)
• 1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 3 x Аудио жака

Слотове за разширение:

• AMD Ryzen 5000 серии/ 4000 G-серии/ 3000 серии процесори
  1 x PCIe 3.0 x16 (x16 режим)
• AMD A520 Chipset
  2 x PCIe 3.0 x1

• 1 x CPU Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x Aura RGB Strip Header
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 with E key for Wi-Fi module
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

Съхранение:

• AMD Ryzen 5000 серии/ 4000 G-серии/ 3000 серии процесори:
  1 x M.2 Socket 3, с M Key, тип 2242/2260/2280/22110 (PCIE 3.0 x4 и SATA режим) поддържани дискови устройства
• AMD A520 Chipset :
  4 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 10
