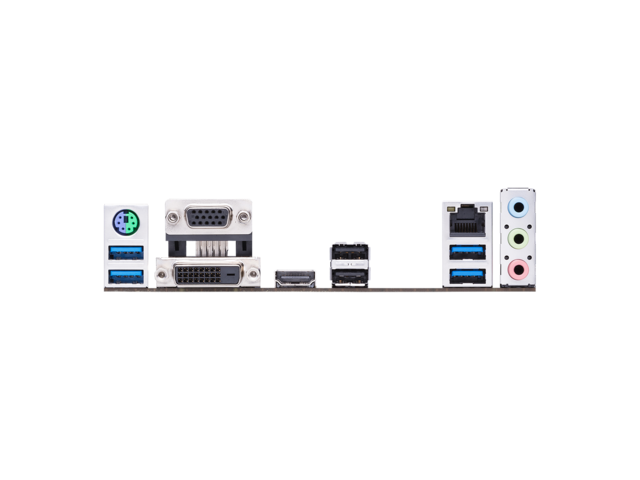

Интерфейс:

• 1 x PS/2 keyboard/mouse комбиниран порт
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)

Памет:

• 4 x DIMM, макс. 128GB, DDR4 4866 (OC)/4800 (OC)/4600 (OC)/4466 (OC)/4400 (OC)/4266 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)) OC)/3600 (OC)/3466 (OC)/3333 (OC)/3200/3000/2800/2666/2400/2133 MHz Небуферирана памет
• Двуканална архитектура на паметта

• Поддръжката на ECC памет (режим ECC) варира в зависимост от процесора

Слотове за разширение:

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
• AMD A520 Chipset
  • 2 x PCIe 3.0 x1

Съхранение:

• 1 x M.2 слота
• 4 x SATA 6Gb/s порта
• Поддръжка Raid 0, 1, 10

Конектори:

• 1 x CPU Fan connector(s)

• 2 x Chassis Fan connector(s)

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

• 1 x SPI TPM header

• 4 x SATA 6Gb/s connector(s)

• 1 x S/PDIF out header(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x 8-pin EATX 12V Power connectors

• 1 x Front panel audio connector(s) (AAFP)

• 1 x Clear CMOS jumper(s)

• 1 x System panel connector

• 1 x COM port header
