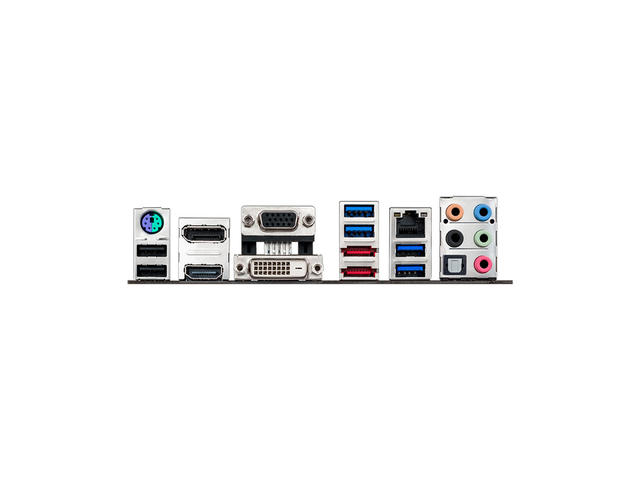

Интерфейси:

• 1x PS/2 Мишка/клавиатура
• 1x DVI
• 1x D-Sub
• 1x HDMI
• 1x DisplayPort
• 1x LAN (RJ45)
• 2x eSATA 6Gb/s
• 4x USB 3.0
• 2x USB 2.0
• 1x Optical S/PDIF out
• 5x аудио жакове

Слотове за разширение:

• 2x PCIe 3.0/2.0 x16 (x16 or dual x8) *³
• 1x PCIe 2.0 x16 (x4 mode)
• 2x PCIe 2.0 x1
• 2x PCI

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 ports (19-pin)
• 4x USB 2.0 connectors supports additional 8 USB 2.0 ports
• 1x COM port connector
• 6x SATA 6Gb/s connectors
• 1x CPU Fan connector (4 -pin)
• 4x Chassis Fan connectors (4 -pin)
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel (Q-Connector)
• 1x DirectKey Button
• 1x DRCT header
• 1x MemOK! button
• 1x TPU switch
• 1x EPU switch
• 1x Clear CMOS jumper
• 1x USB BIOS Flashback button



Поддържа HDMI с макс. резолюция 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*¹
Поддържа DVI с макс. резолюция 2560 x 1600 @ 60 Hz
Поддържа RGB с макс. резолюция 1920 x 1600 @ 60 Hz
Поддържа DisplayPort с макс. резолюция 4096 x 2160 @ 60 Hz

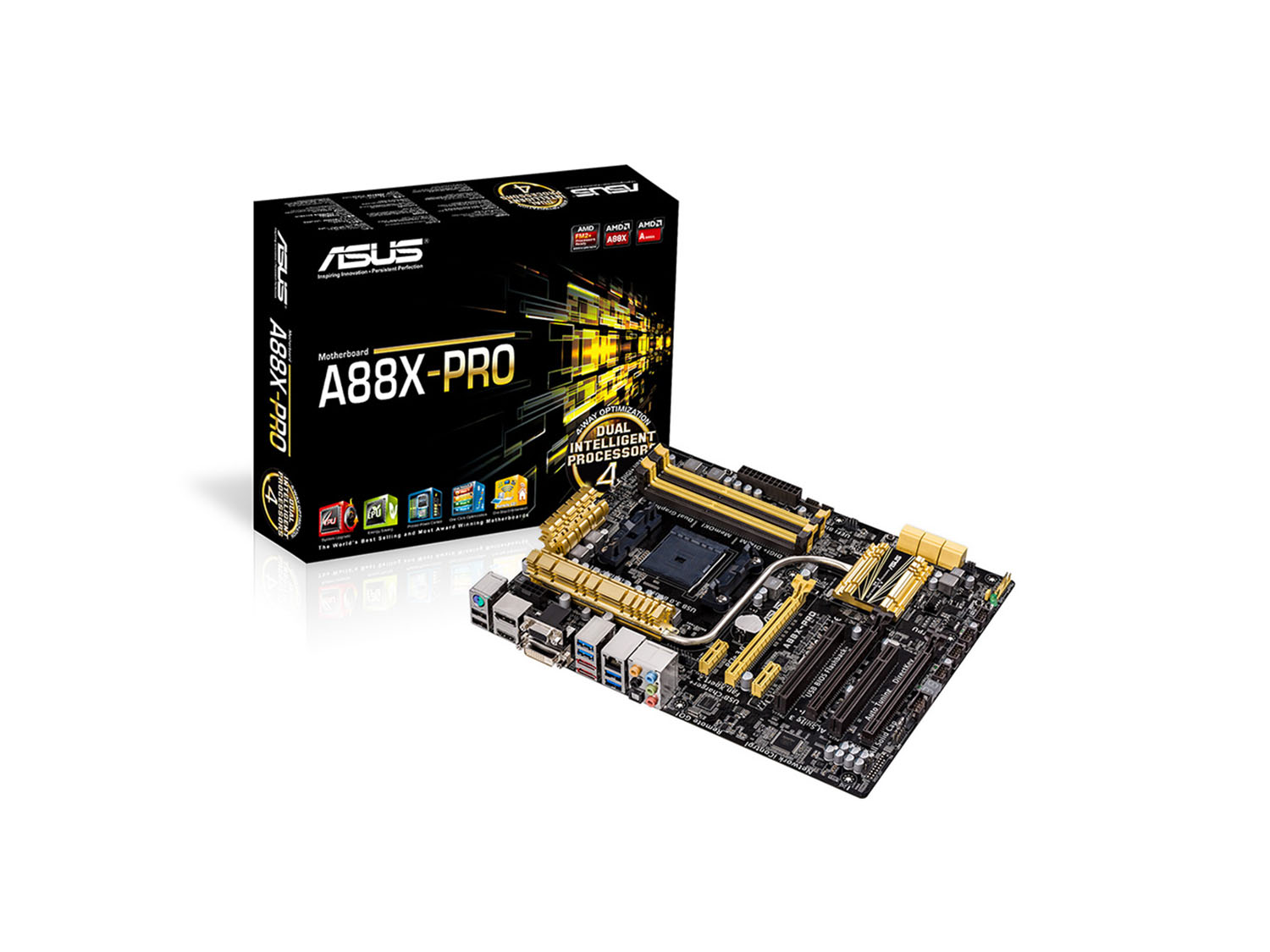

В комплекта са включени:

• Упътване
• 4x SATA 6Gb/s кабел
• 1x Q-connector (2 in 1)
