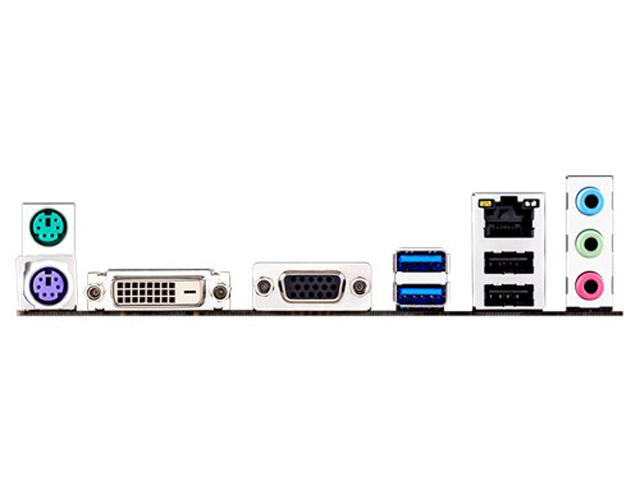

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x DVI
• 1 x D-Sub
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 2 x USB 2.0
• 3 x Audio jack(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16( само FM2+ процесори поддържат PCIe3.0.)
• 1 x PCIe 2.0 x1
• 1 x PCI

Конектори:

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)

Съхранение:
