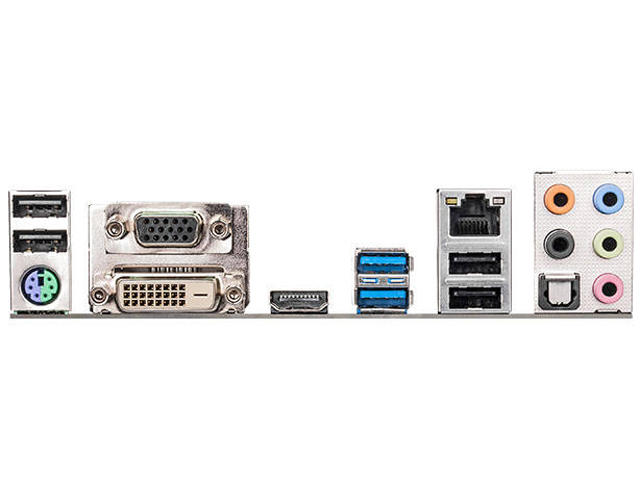

Интерфейси:

•  1 x PS/2 мишка/ клавиатура


•  1 x D-Sub
•  1 x DVI-D
•  1 x HDMI
•  1 x Optical SPDIF Out
•  4 x USB 2.0
•  2 x USB 3.0
•  1 x RJ-45 LAN с LED индикатор
•  HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

•  1 x PCI Express 3.0 x16 слот (PCIE1 @ x16 mode)


•  1 x PCI Express 2.0 x16 слот (PCIE3 @ x4 mode)
•  1 x PCI Express 2.0 x1 слот
•  1 x PCI слот
• Поддържа AMD Quad CrossFireX, CrossFireX и Dual Graphics



Конектори:

•  1 x IR Header


•  1 x Print Port Header
•  1 x COM Port Header
•  1 x Chassis Intrusion Header
•  1 x TPM Header
•  1 x Power LED Header
•  2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
•  1 x Chassis Fan Connector (4-pin)
•  1 x Power Fan Connector (3-pin)
•  1 x 24 pin ATX Power Connector
•  1 x 8 pin 12V Power Connector
•  1 x Front Panel Audio Connector
•  3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
•  1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))



Съхранение:

•  8 x SATA3 6.0 Gb/s конектора
•  Поддържа RAID (RAID 0, RAID 1, RAID 5 и RAID 10), NCQ, AHCI и Hot Plug

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
