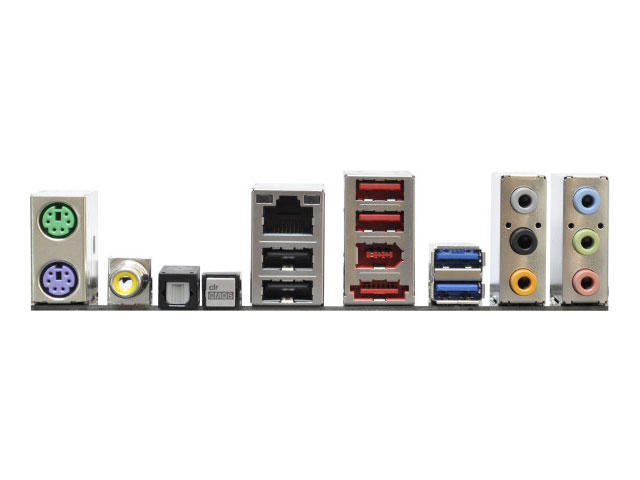

Интерфейси:

• 1x PS/2 порт за мишка
• 1x PS/2 порт за клавиатура
• 1x SPDIF Out Coaxial
• 1x SPDIF Out Optical
• 4x USB 2.0
• 1x eSATA3
• 2x USB 3.0
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 1x IEEE 1394 Port
• HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone

Слотове за разширение:

• 3x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or dual at x8 (PCIE2) / x8 (PCIE4) ; PCIE5: x4 mode)
• 2x PCI Express 2.0 x1 slots
• 2x PCI slots
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Поддържа NVIDIA SLI

Конектори:

• 5x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions
• 1x IR header
• 1x CIR header
• 1x COM port header
• 1x IEEE 1394 header
• 1x HDMI_SPDIF header
• 1x Power LED header
• CPU/Chassis/Power FAN connector
• 24 pin ATX power connector
• 8 pin 12V power connector
• Front panel audio connector
• 3x USB 2.0 headers (support 6 USB 2.0 ports)
• 1x USB 3.0 header (supports 2 USB 3.0 ports) (Asmedia ASM1042)

Комплектът включва:

• Упътване за бързо стартиране
• 4x SATA Data кабели
• 1x 3.5mm Audio кабел

Сертификати: FCC, CE, WHQL
